524SCMGI - Renesas Electronics

Description: The 524S is a low skew, single input to four output, LVCMOS clock buffer. The 524S has best in class additive phase Jitter of sub 50 fsec.

Download 524SCMGI Model

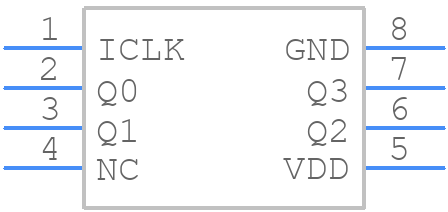

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
524SCMGI - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - cmg8
click to zoom
3D Models
524SCMGI - Renesas Electronics  - 3D model - Small Outline No-lead - cmg8
click to zoom

524SCMGI Details

  • Manufacturer Part Number:

    524SCMGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    COL

  • Pin Count:

    8

  • Manufacturer Package Code:

    CMG8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    524

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.025 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TAPE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    22 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4.5 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • fmax-Min:

    200 MHz

524SCMGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 524SCMGI is -40°C to +125°C.
  • To ensure reliable communication, make sure to follow the I2C bus specification, use proper pull-up resistors, and ensure that the clock frequency is within the recommended range.
  • The maximum current consumption of the 524SCMGI is 1.5mA (typical) and 3.5mA (maximum) at 3.3V supply voltage.
  • No, the 524SCMGI is designed to operate at 3.3V supply voltage. Using it in a 5V system may damage the device or affect its performance.
  • The 524SCMGI has built-in error detection and correction mechanisms. Implement error handling mechanisms in your firmware to detect and recover from errors, such as checksum errors or bus errors.
