525-01RILF - Renesas Electronics

Description: The 525-01/02 are the most flexible way to generate a high-quality, high-accuracy, high-frequency clock output from an inexpensive crystal or clock input. These devices are designed to replace crystal oscillators in almost any electronic system. The user can configure the device to produce nearly any output frequency from any input frequency by grounding or floating the select pins. Neither microcontroller, software, nor device programmer are needed to set the frequency. Using Phase-Locked Loop (PLL) techni

Download 525-01RILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

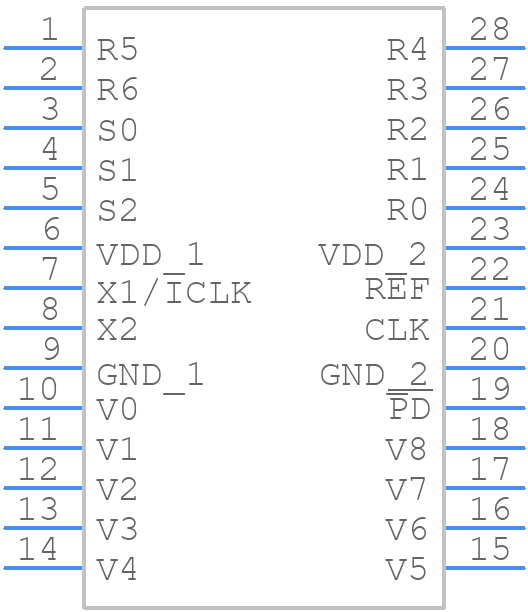

525-01RILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
525-01RILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG28-2
click to zoom
3D Models
525-01RILF - Renesas Electronics - 3D model - Small Outline Packages - PCG28-2
click to zoom

525-01RILF Details

  • Manufacturer Part Number:

    525-01RILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    PCG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    OPERATES AT 3 V MINIMUM SUPPLY AT 90 MHZ

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    140 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

525-01RILF Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane or a heat sink.
  • Use a shielded enclosure, keep signal lines short, and use a common mode choke or ferrite bead on the power lines. Ensure a solid ground plane and decouple power supplies. Follow Renesas' application notes for specific guidance.
  • Power-up sequence: VCC, then VDD, then input signals. Power-down sequence: input signals, then VDD, then VCC. Ensure a monotonic power-up and power-down to prevent latch-up or damage.
  • Handle the device by the body, not the pins. Use an ESD wrist strap or mat, and store the device in an anti-static bag or container. Ensure the workspace is ESD-safe and follow standard ESD handling procedures.
  • The maximum junction temperature is 150°C. Derate the device by 1.5°C/W above 25°C ambient temperature. Ensure a maximum power dissipation of 1.5W. Follow the thermal derating curve in the datasheet.
