525R-03ILFT - Renesas Electronics

Description: The 525-03 are the most flexible way to generate a high-quality, high-accuracy, high-frequency clock output from a PECL input. The name OSCaR stands for OSCillator Replacement, as they are designed to replace crystal oscillators in almost any electronic system. The user can configure the device to produce nearly any output frequency from any input frequency by grounding or floating the select pins. Neither microcontroller, software, nor device programmer are needed to set the frequency. Using Phase-Locked L

Download 525R-03ILFT Model

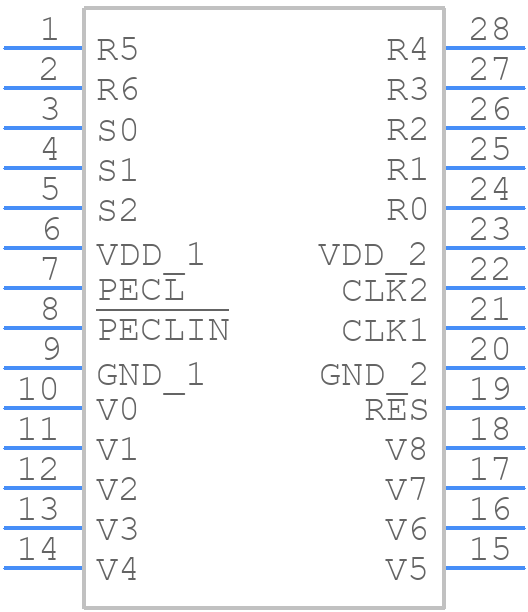

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
525R-03ILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 28 pin SSOP
click to zoom
3D Models
525R-03ILFT - Renesas Electronics  - 3D model - Small Outline Packages - 28 pin SSOP
click to zoom

525R-03ILFT Details

  • Manufacturer Part Number:

    525R-03ILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    PCG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3V AT 200 MHZ

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    250 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    250 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

525R-03ILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1841) for the 525R-03ILFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To handle the high current requirements of the 525R-03ILFT, it is recommended to use a robust power delivery system with low-ESR capacitors, thick copper traces, and multiple vias to reduce resistance and inductance. Additionally, consider using a dedicated power plane and decoupling capacitors close to the device.
  • The input capacitor (CIN) should be a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of 25V or higher. The output capacitor (COUT) should be a low-ESR ceramic capacitor with a minimum capacitance of 22uF and a voltage rating of 10V or higher. Refer to the datasheet for specific recommendations on capacitor selection.
  • To ensure the 525R-03ILFT operates within its safe operating area (SOA), monitor the device's junction temperature (TJ) and ensure it does not exceed the maximum rated temperature of 150°C. Also, ensure the input voltage (VIN) and output voltage (VOUT) are within the recommended operating ranges, and the output current (IOUT) does not exceed the maximum rated current.
  • The thermal interface material (TIM) should have a thermal conductivity of at least 1 W/m-K and a thickness of 0.5 mm or less. The heat sink design should have a thermal resistance of 10°C/W or less and be designed to provide adequate airflow to dissipate heat. Refer to the datasheet for specific recommendations on TIM and heat sink selection.
