Description:The 527-01 Clock Slicer is the most flexible way to generate an output clock from an input clock with zero skew. The user can easily configure the device to produce nearly any output clock that is multiplied or divided from the input clock. The part supports non-integer multiplications and divisions. A SYNC pulse indicates when the rising clock edges are aligned with zero skew. Using Phase-Locked Loop (PLL) techniques, the device accepts an input clock up to 200 MHz and produces an output clock up to 160 MH
Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 527R-01LFT also has an internal overcurrent detection feature, but it's not enabled by default and requires external resistors to set the detection threshold.
Although the datasheet specifies a maximum VCC voltage of 5.5V, Renesas recommends limiting the voltage to 5.25V during power-up to ensure reliable operation and prevent damage to the device.
Renesas provides EMC design guidelines in their application note (R01AN0264EJ0100), which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with regulatory standards.
Although the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends operating the device within a narrower range of -20°C to 85°C for optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
527R-01LFT Overview

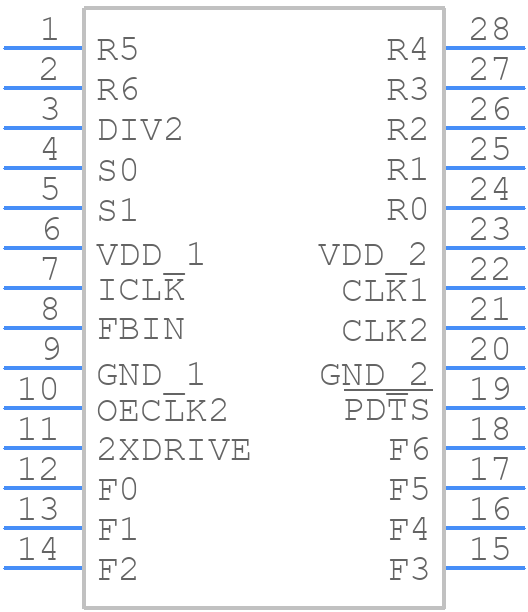

Use the download button to access the 527R-01LFT schematic symbol, PCB footprint, and 3D model.
