52806-2010 - Molex

Description: FFC & FPC Connectors 1MM FFC/FPC CONN 20CKT

Download 52806-2010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

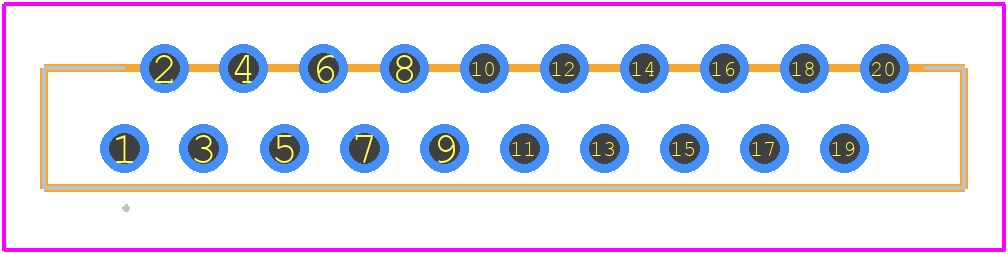

52806-2010 - Molex PCB footprint - Other - Other - 52806-2010-2
click to zoom
3D Models
52806-2010 - Molex  - 3D model - Other - 52806-2010-2
click to zoom

52806-2010 Details

  • Manufacturer Part Number:

    52806-2010

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Hong Kong SAR, Japan, Mainland China, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    STAGGERED CONFIGURATION

  • Body Breadth:

    0.118 inch

  • Body Depth:

    0.213 inch

  • Body Length:

    0.748 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    SINGLE PRONG

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.0066 mm

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0
