529902B02500G - Boyd Corporation

Description: Heat Sink TO-220 Aluminum 6.0W @ 30°C Board Level, Vertical , 1.50°C/W @ 500 LFM , 4.50°C/W

Download 529902B02500G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

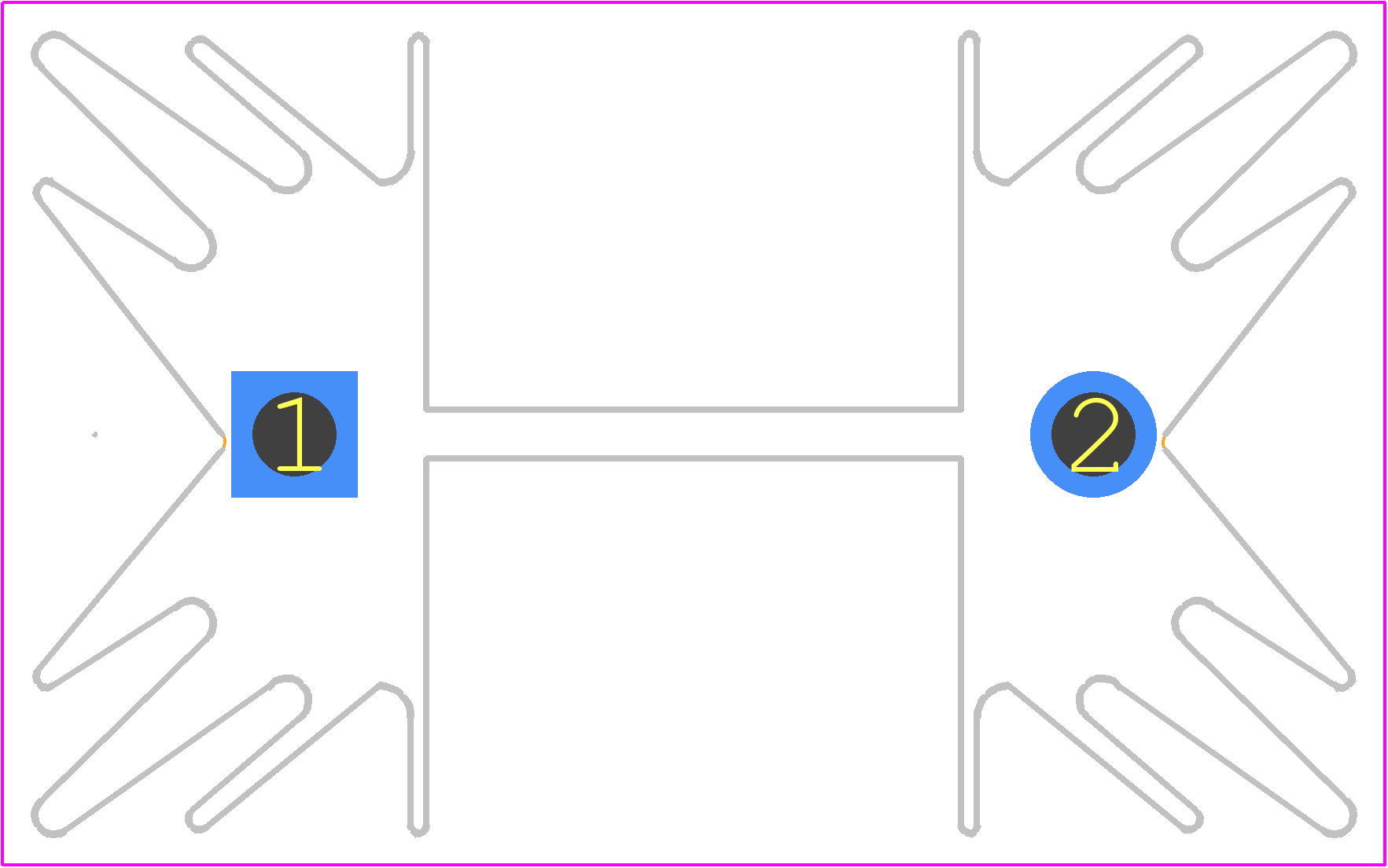

529902B02500G - Boyd Corporation PCB footprint - Other - Other - 529902B02500G-3
click to zoom

529902B02500G Details

  • Manufacturer Part Number:

    529902B02500G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Boyd Corporation

  • YTEOL:

    8

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Construction:

    EXTRUDED

  • Fin Orientation:

    RADIAL

  • Finish:

    ANODIZED

  • Height:

    50.8 mm

  • Length:

    41.91 mm

  • Thermal Resistance:

    4.5 Ω

  • Thermal Support Device Type:

    HEAT SINK

  • Width:

    25.4 mm

529902B02500G Frequently Asked Questions (FAQs)

  • The recommended storage condition for 529902B02500G is in a cool, dry place away from direct sunlight, with a temperature range of 15°C to 30°C (59°F to 86°F) and relative humidity below 60%.
  • Yes, 529902B02500G is designed to withstand high-vibration environments. However, it's recommended to consult with Boyd Corporation's technical support team to determine the specific vibration requirements and ensure the material meets those needs.
  • 529902B02500G is generally compatible with common cleaning solvents such as isopropyl alcohol and acetone. However, it's recommended to perform a compatibility test before using any cleaning solvents to ensure the material's properties are not affected.
  • The minimum operating temperature range for 529902B02500G is -40°C (-40°F), and the maximum operating temperature range is 150°C (302°F). However, the material's thermal performance may degrade above 125°C (257°F).
  • Yes, 529902B02500G can be die-cut to custom shapes and sizes. Boyd Corporation offers custom die-cutting services, and engineers can work with their technical support team to design and manufacture custom parts that meet specific application requirements.
