530340-1 - TE Connectivity

Description: Headers & Wire Housings 2 ROW BOX RECP 30 POS STAG

Download 530340-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
530340-1 - TE Connectivity - PCB symbol
click to zoom

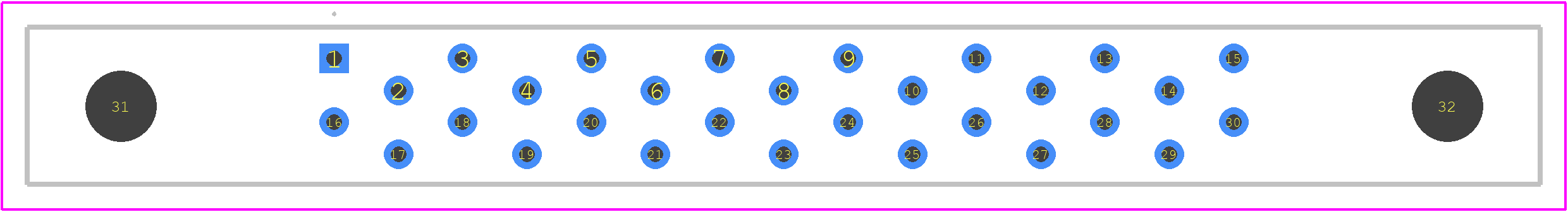

PCB Footprints
530340-1 - TE Connectivity PCB footprint - Other - Other - 530340-1-1
click to zoom
3D Models
530340-1 - TE Connectivity - 3D model - Other - 530340-1-1
click to zoom

530340-1 Details

  • Manufacturer Part Number:

    530340-1

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Body Breadth:

    0.248 inch

  • Body Depth:

    0.4 inch

  • Body Length:

    2.355 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #2-56

  • Mounting Option 2:

    JACKSCREW

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    50u inch

  • Polarization Key:

    SHRD ENDS

  • Terminal Length:

    0.156 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

530340-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 530340-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The 530340-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 530340-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 530340-1 connector. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure that the connector can accommodate the desired wire size and meet the required performance and safety standards.
