530BB100M000DG - Skyworks

Description: Standard Clock Oscillators Differential/single-ended; single frequency XO; OE pin 2 (pin 1 for CMOS); 10-1417 MHz

Download 530BB100M000DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

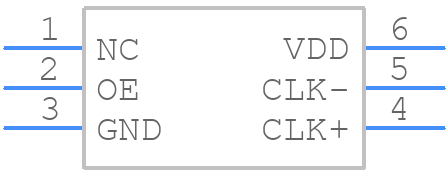

530BB100M000DG - Skyworks - PCB symbol
click to zoom
PCB Footprints

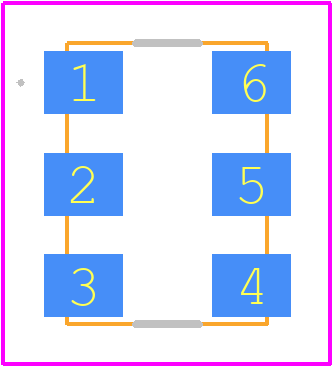

530BB100M000DG - Skyworks PCB footprint - Other - Other - 6-SMD_2025-1
click to zoom
3D Models
530BB100M000DG - Skyworks - 3D model - Other - 6-SMD_2025-1
click to zoom

530BB100M000DG Details

  • Manufacturer Part Number:

    530BB100M000DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 6 PIN

  • Country Of Origin:

    Taiwan

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6

  • Additional Feature:

    TRAY

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    945 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.2

  • Physical Dimension:

    7.0mm x 5.0mm x 1.85mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    0.35 ns

  • Supply Current-Max:

    98 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

530BB100M000DG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used to connect the device to the antenna.
  • The device requires a 3.3V power supply and a bias current of 10mA. A voltage regulator and a bias resistor network can be used to provide the required bias voltage and current. The bias voltage should be decoupled with a 10uF capacitor to minimize noise.
  • The device can handle a maximum input power of 30dBm (1W). Exceeding this power level may cause damage to the device or affect its performance.
  • Use a spectrum analyzer to check the output spectrum of the device. Verify that the input signal is within the recommended power range and that the device is properly biased. Check for any signs of overheating or physical damage to the device.
  • Yes, the device can be used in a push-pull configuration to achieve higher output power. However, this requires careful design and layout to ensure proper impedance matching and to minimize electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

530BB100M000DG Overview

Use the download button to access the 530BB100M000DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 530BB, or try a keyword search, such as XO
