530CB33M8688DG - Silicon Labs

Description: CRYSTAL OSCILLATOR (XO), 3.3VDD, CMOS

Download 530CB33M8688DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

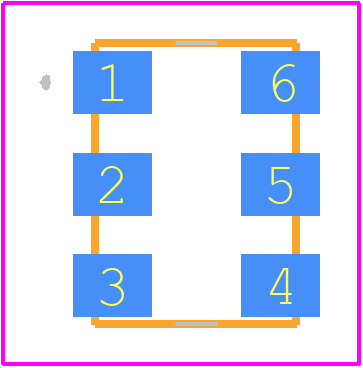

530CB33M8688DG - Silicon Labs PCB footprint - Other - Other - 530CB33M8688DG-2
click to zoom
3D Models
530CB33M8688DG - Silicon Labs  - 3D model - Other - 530CB33M8688DG-2
click to zoom

530CB33M8688DG Details

  • Manufacturer Part Number:

    530CB33M8688DG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Silicon Laboratories Inc

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    33.8688 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Output Low Current-Max:

    32 mA

  • Package Equivalence Code:

    DILCC6,.2

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    88 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier
