The recommended torque value for the screw terminals of the 532-AG11D connector is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 532-AG11D connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2-200 Hz.
Yes, the 532-AG11D connector is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, and can operate in temperatures ranging from -40°C to 125°C.
Yes, the 532-AG11D connector can accommodate wire sizes ranging from 16 AWG to 20 AWG. However, the recommended wire size is 18 AWG for optimal performance.
Yes, the 532-AG11D connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
532-AG11D Overview

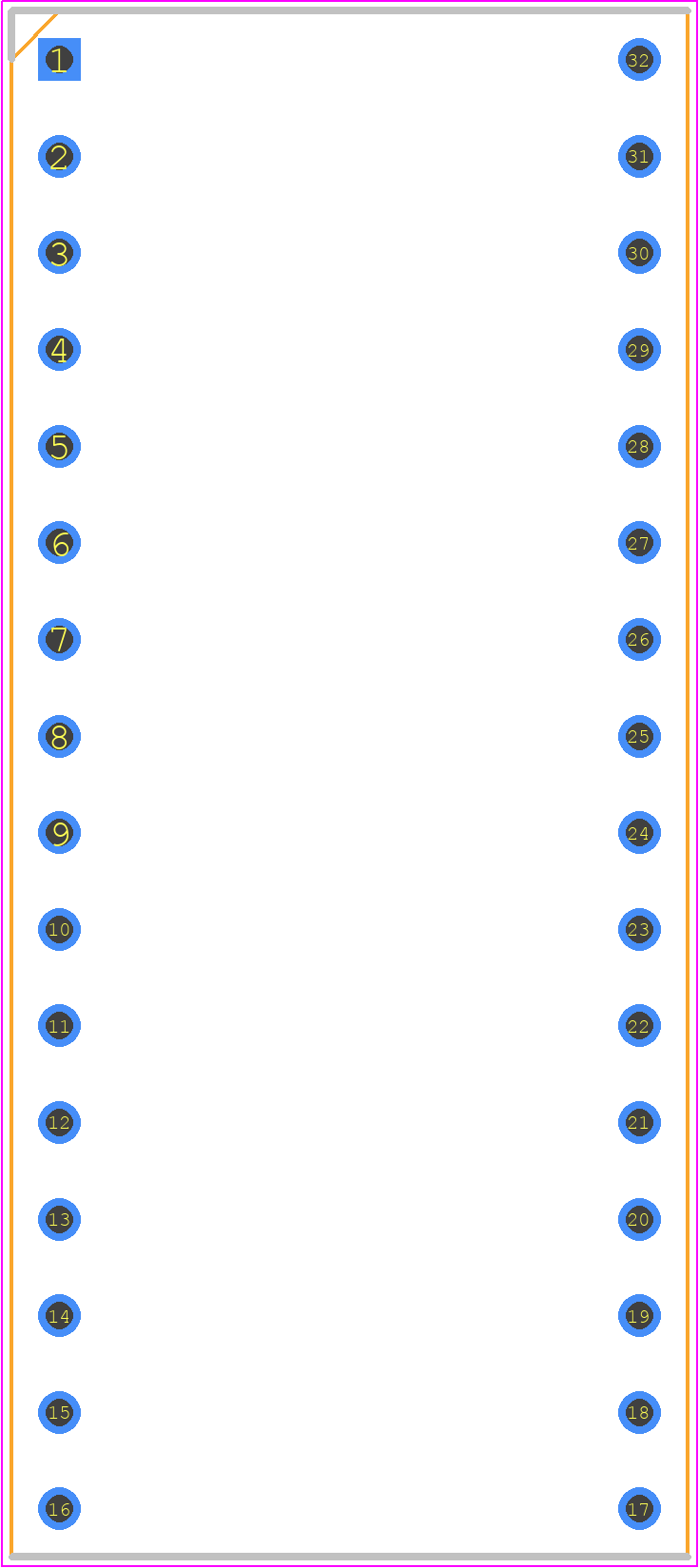

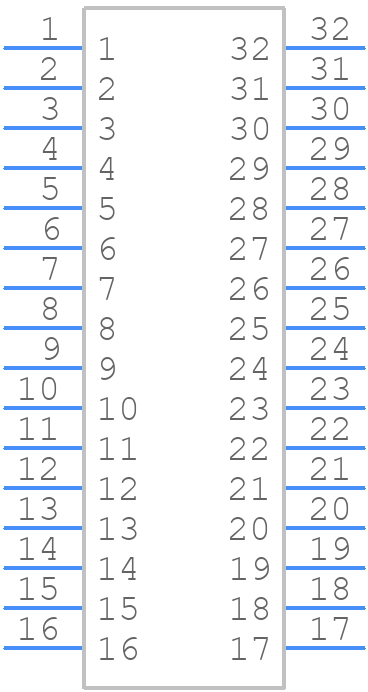

Use the download button to access the 532-AG11D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 532-A,
or try a keyword search, such as Sockets and Chip Carriers
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
