5338932-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

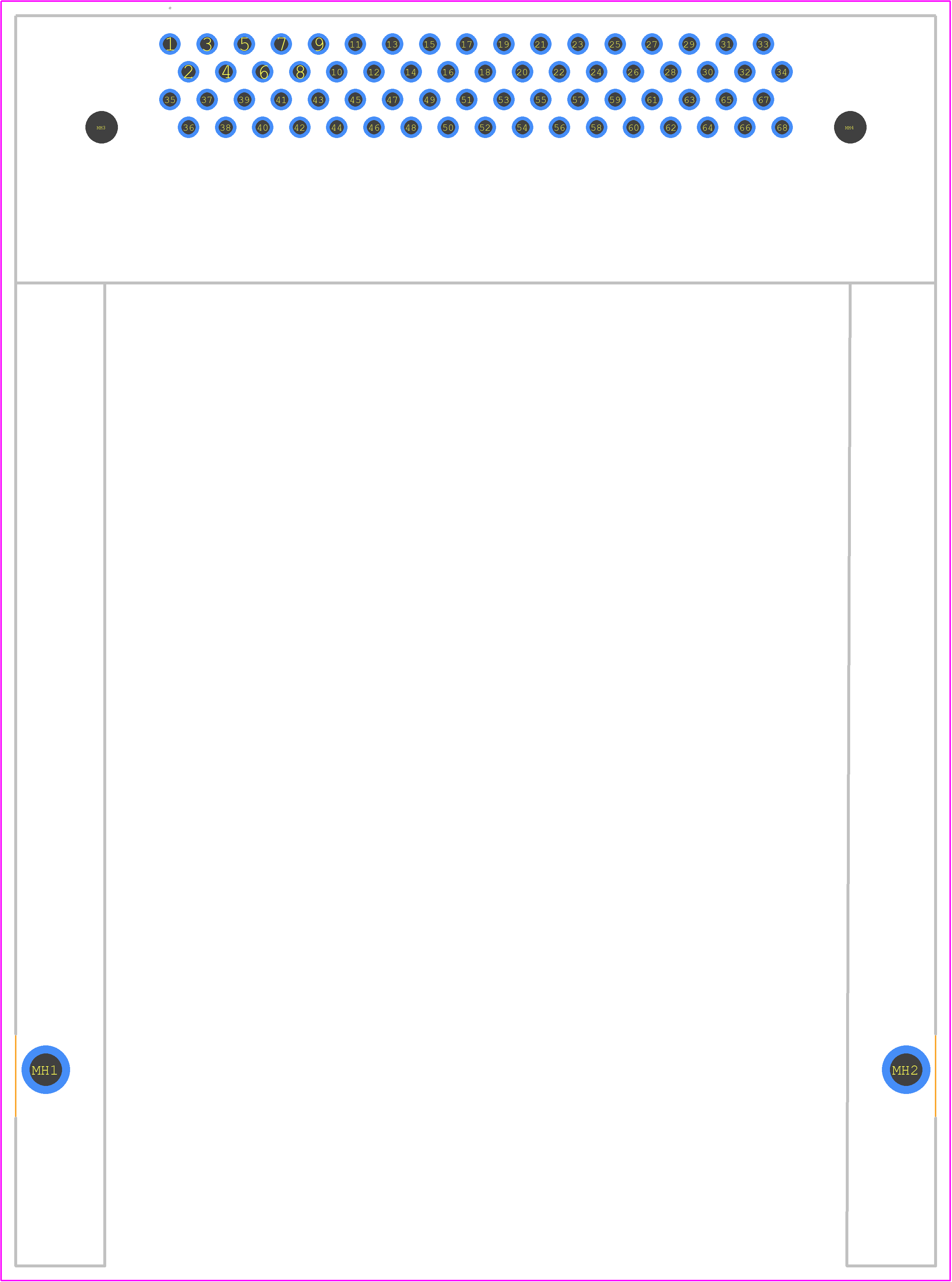

PCB Footprints

5338932-1 - TE Connectivity PCB footprint - Other - Other - 5338932-1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5338932-1
Part Number 5338932-1
Manufacturer TE Connectivity
Pin Count 70
Part Category Connector
Package Category Other
Footprint Name Other - 5338932-1-2
Released Date Feb 4, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

5338932-1 Details

Manufacturer Part Number:
5338932-1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Connector Type:
PCMCIA CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Option:
GENERAL PURPOSE

Trust Checks

Expert Contribution

System Verified

Community Approved

5338932-1 Overview

Use the download button to access the 5338932-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 53389, or try a keyword search, such as Headers and Edge Type Connectors
