53D212G035GJ6 - Vishay

Description: Aluminum Capacitors +85 °C, Tubular, Axial Lead, General Purpose

Download 53D212G035GJ6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
53D212G035GJ6 - Vishay - PCB symbol
click to zoom
PCB Footprints

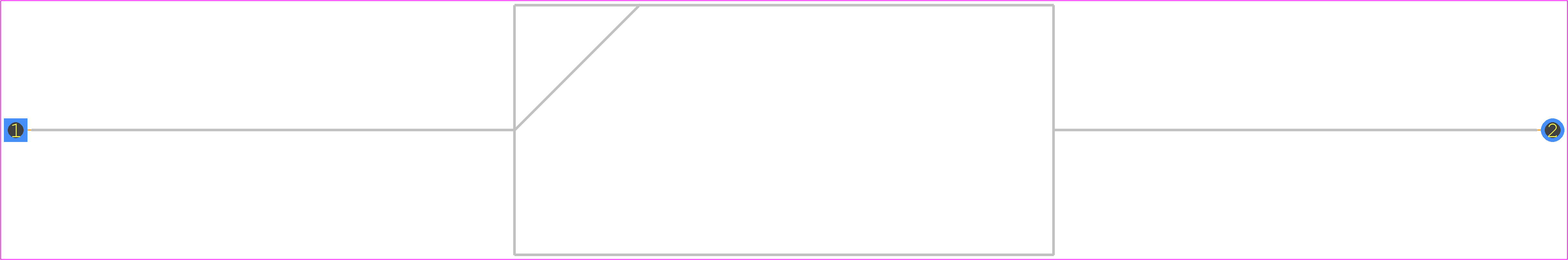

53D212G035GJ6 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 53D212G035GJ6
click to zoom
3D Models
53D212G035GJ6 - Vishay - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 53D212G035GJ6
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 53D212G035GJ6
  • Part Number 53D212G035GJ6
  • Manufacturer Vishay
  • Pin Count 2
  • Part Category Capacitor Polarised
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - 53D212G035GJ6
  • Released Date Aug 24, 2022
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

53D212G035GJ6 Details

  • Manufacturer Part Number:

    53D212G035GJ6

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.22

  • Capacitance:

    2100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    19.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    111 mΩ

  • JESD-609 Code:

    e0

  • Leakage Current:

    1.6267 mA

  • Length:

    41.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    75%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    1590 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    WIRE
