54132-3333 - Molex

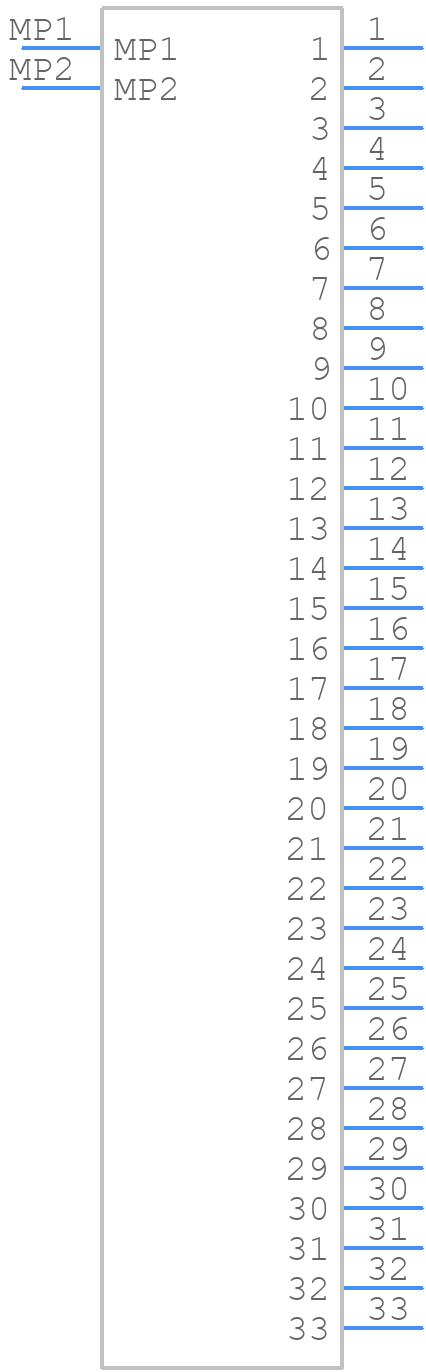

54132-3333 Details

• Manufacturer Part Number:

  54132-3333

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Manufacturer:

  Molex

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.079 inch

• Body Depth:

  0.22 inch

• Body Length:

  0.866 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  10 Cycles

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  GLASS FILLED POLYAMIDE

• Manufacturer Series:

  54132

• Mating Contact Pitch:

  0.02 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  39u inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Pitch:

  0.508 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  33
