5413879-2 - TE Connectivity

Description: BNC RF Interface, Jack, 50 ohm, Bayonet, 4 GHz Operating Frequency, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount / Panel Mount

Download 5413879-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5413879-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

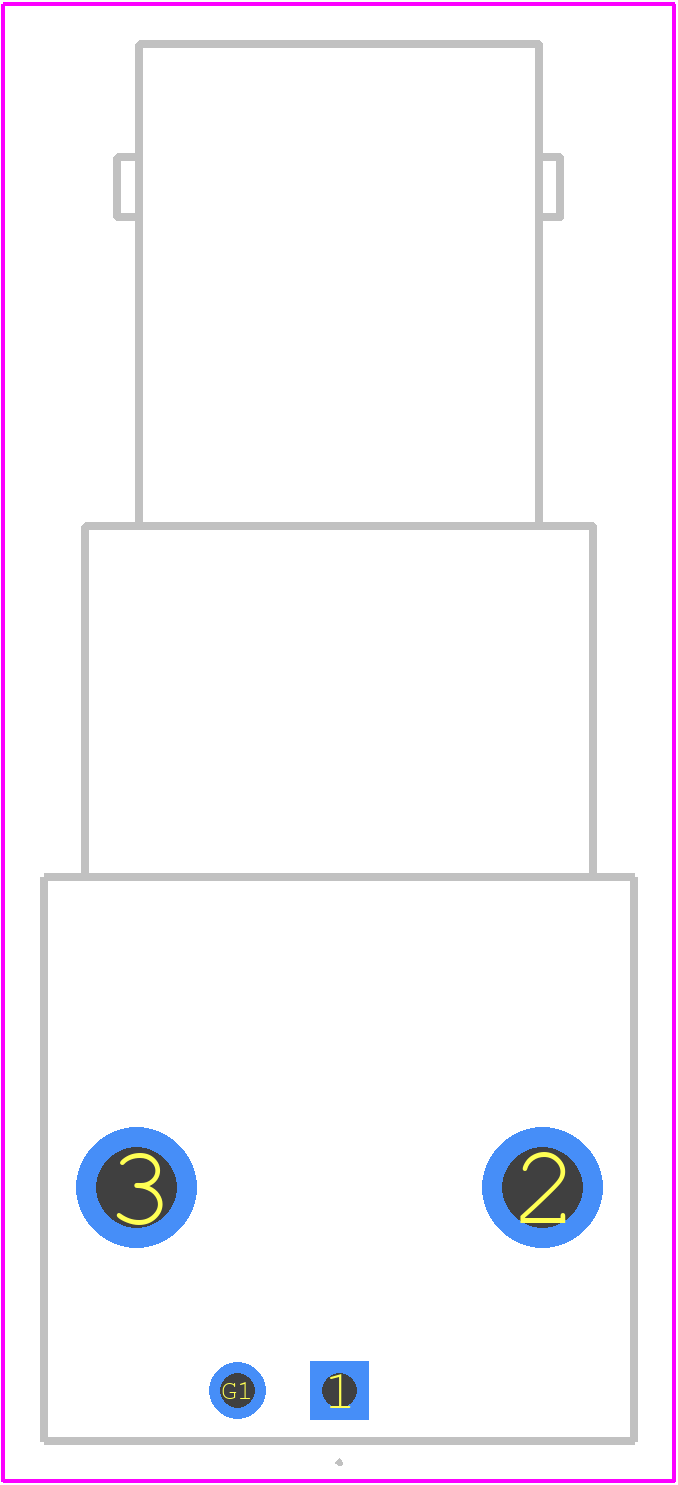

5413879-2 - TE Connectivity PCB footprint - Other - Other - 5413879-2-2
click to zoom
3D Models
5413879-2 - TE Connectivity - 3D model - Other - 5413879-2-2
click to zoom

5413879-2 Details

  • Manufacturer Part Number:

    5413879-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.55

  • Additional Feature:

    VSWR MAX AT 3 GHZ

  • Body Depth:

    0.5 inch

  • Body Diameter:

    0.436 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Loss:

    0.3 dB

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYMETHYLPENTENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    4 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.162 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • VSWR:

    1.35

5413879-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 5413879-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5413879-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5413879-2 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult TE Connectivity's environmental testing data and application notes for specific guidance on using the connector in harsh environments.
  • The recommended wire size for the 5413879-2 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes for more information.
