5415373-1 - TE Connectivity

Description: RF Connectors / Coaxial Connectors JACK R/A 75 OHM

Download 5415373-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5415373-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

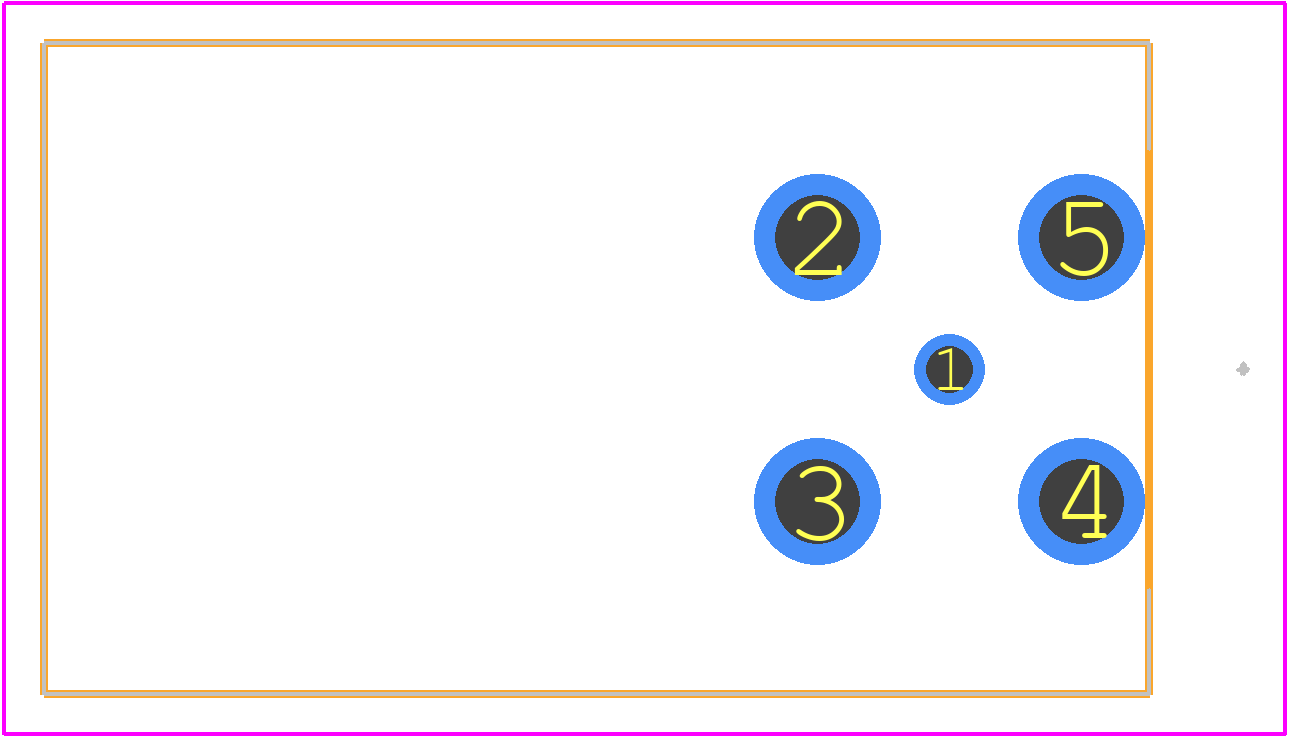

5415373-1 - TE Connectivity PCB footprint - Other - Other - 5415373-1-2
click to zoom
3D Models
5415373-1 - TE Connectivity - 3D model - Other - 5415373-1-2
click to zoom

5415373-1 Details

  • Manufacturer Part Number:

    5415373-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.432 inch

  • Body Depth:

    0.432 inch

  • Body Diameter:

    0.505 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    75 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    16 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    15.568 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYMETHYLPENTENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    4 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    TIN

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.17 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • Withdrawl Force-Min:

    .278 N

5415373-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 5415373-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
  • The 5415373-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector and cable assembly to maintain its integrity in outdoor environments.
  • The 5415373-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 5415373-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and backshells. However, it's essential to verify compatibility and ensure proper mating and assembly to ensure reliable connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5415373-1 Overview

Use the download button to access the 5415373-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 54153, or try a keyword search, such as RF BNC Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
