5435802-3 - TE Connectivity

Description: DIP Switches / SIP Switches R/A 4 POS DIP AU

Download ECAD Model

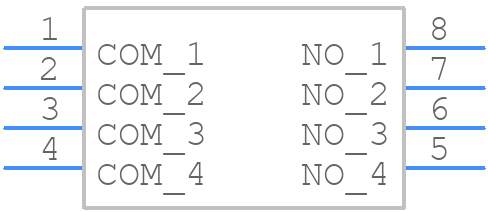

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

5435802-3 - TE Connectivity PCB footprint - Other - Other - 5435802-3-3
click to zoom

3D Models

5435802-3 - TE Connectivity  - 3D model - Other - 5435802-3-3
click to zoom

5435802-3 Details

  • Manufacturer Part Number:

    5435802-3

  • Brand Name:

    Alcoswitch

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    43 Weeks

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    1.1

  • Samacsys Modified On:

    2020-10-04 19:49:56

  • YTEOL:

    6.3

  • Actuator Type:

    PIANO

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    7.366 mm

  • Body Color:

    BLACK

  • Body Height:

    7.36 mm

  • Body Length or Diameter:

    12.19 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    1.5 A

  • Contact Current(DC)-Max:

    1.5 A

  • Contact (DC) Max Rating R Load:

    0.025A@24VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Timing:

    BREAK-BEFORE-MAKE

  • Contact Voltage(DC)-Max:

    50 V

  • Dielectric Withstand Volts:

    500VDC V

  • Electrical Life:

    7000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    TIN

  • Housing Material:

    GLASS FILLED POLYESTER

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYESTER

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    4

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Solderability:

    WAVE

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Length:

    0.14 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    WIRE
