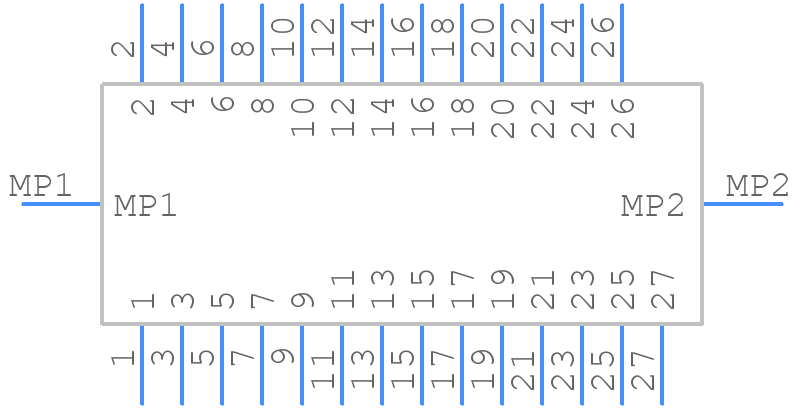

54393-2782 - Molex

54393-2782 Details

• Manufacturer Part Number:

  54393-2782

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  LEAD FREE

• ECCN Code:

  EAR99

• Manufacturer:

  Molex

• YTEOL:

  0

• Additional Feature:

  ROHS, ELV COMPL. & EMBSTP PKG.

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.077 inch

• Body Depth:

  0.173 inch

• Body Length:

  0.417 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  80 mΩ

• Contact Style:

  SINGLE PRONG

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  50000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.012 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  4.1402 mm

• Plating Thickness:

  8u inch

• Rated Current (Signal):

  0.2 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.3 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  27

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  ZIF N
