549BACB002003ACG - Skyworks

Description: 161.132812 MHz XO (Standard) LVDS Oscillator 1.8V, 2.5V, 3.3V Enable/Disable 8-SMD, No Lead

Download 549BACB002003ACG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 549BACB002003ACG model

Email notifications will be applied after download.

Send part feedback

Symbol

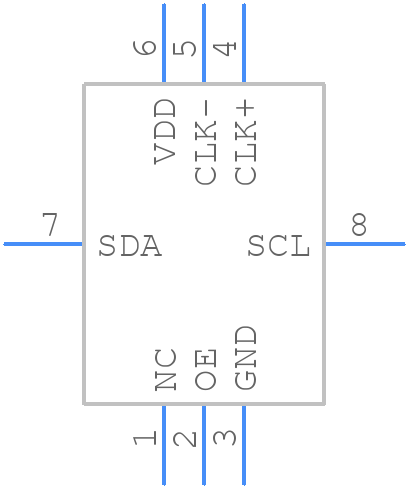

549BACB002003ACG - Skyworks - PCB symbol

PCB Footprints

549BACB002003ACG - Skyworks PCB footprint - Other - Other - 7.00mm x 5.00mm x 1.33mm

3D Models

549BACB002003ACG - Skyworks - 3D model - Other - 7.00mm x 5.00mm x 1.33mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for 549BACB002003ACG
Part Number 549BACB002003ACG
Manufacturer Skyworks
Pin Count 8
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 7.00mm x 5.00mm x 1.33mm
Released Date Jul 15, 2025
Last Modified Date Jul 15, 2025 12:51 PM UTC
Pinout / Pin List Click Here (Member Only)

549BACB002003ACG Details

Manufacturer Part Number:
549BACB002003ACG
Manufacturer:
Skyworks Solutions Inc

Trust Checks

Community Provided

System Verified

Community Approved

549BACB002003ACG Overview

Use the download button to access the 549BACB002003ACG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 549BA, or try a keyword search, such as XO
