54LS11DMQB/NOPB footprint, schematic symbol and 3D model by Texas Instruments

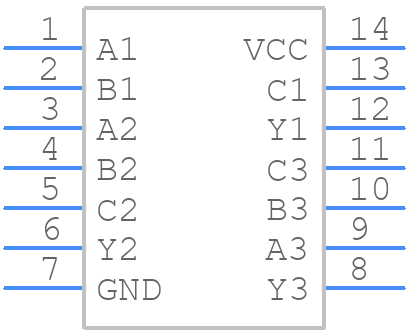

Symbol

click to zoom

PCB Footprints

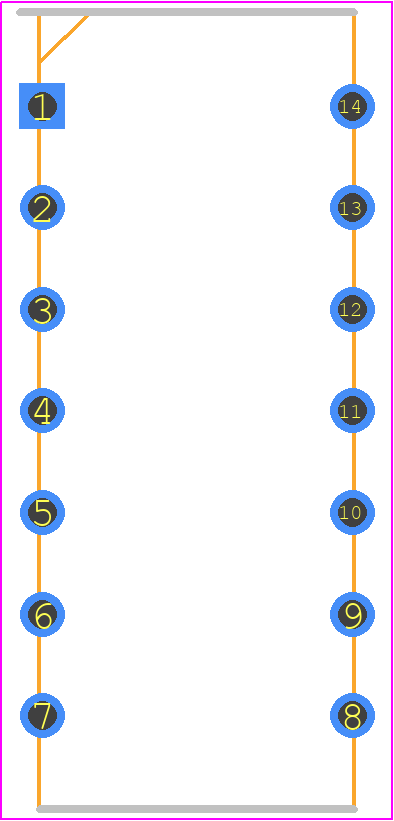

54LS11DMQB/NOPB - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - NS Package Number J14A_2021

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 54LS11DMQB/NOPB
Part Number 54LS11DMQB/NOPB
Manufacturer Texas Instruments
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - NS Package Number J14A_2021
Released Date Mar 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

54LS11DMQB/NOPB Details

Manufacturer Part Number:
54LS11DMQB/NOPB
Manufacturer:
Texas Instruments

Trust Checks

Community Provided

System Verified

Community Approved

54LS11DMQB/NOPB Overview

Use the download button to access the 54LS11DMQB/NOPB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 54LS1, or try a keyword search, such as Gates

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
