551-0407-004F - Dialight

Description: Dialight 551-0407-004F, Red Right Angle PCB LED Indicator, 4 LEDs, Through Hole 2 V

Download 551-0407-004F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

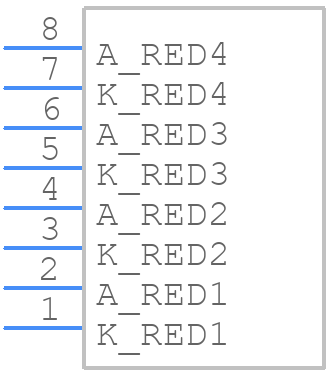

551-0407-004F - Dialight - PCB symbol
click to zoom
PCB Footprints
551-0407-004F - Dialight PCB footprint - Other - Other - 551-0407-004F-2
click to zoom
3D Models
551-0407-004F - Dialight - 3D model - Other - 551-0407-004F-2
click to zoom

551-0407-004F Details

  • Manufacturer Part Number:

    551-0407-004F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    0.001 cd

  • Luminous Intensity-Nom:

    10.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    7.11 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    650 nm

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    45 deg
