553-0711 - Visual Communications Company

Description: LED Bi-Color Green/Red 565nm/660nm Bag

Download 553-0711 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

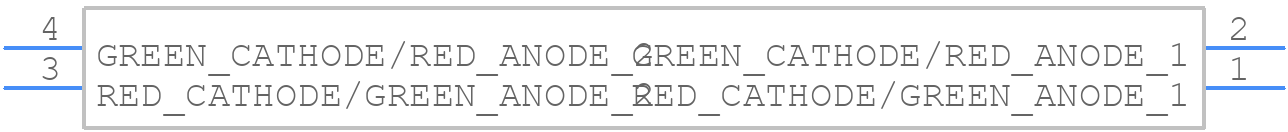

553-0711 - Visual Communications Company - PCB symbol
click to zoom
PCB Footprints
553-0711 - Visual Communications Company PCB footprint - Other - Other - 553-0711-2
click to zoom
3D Models
553-0711 - Visual Communications Company - 3D model - Other - 553-0711-2
click to zoom

553-0711 Details

  • Manufacturer Part Number:

    553-0711

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8531.80.90.51

  • Manufacturer:

    Visual Communications Company

  • YTEOL:

    6.25

  • Color:

    RED/GREEN

  • Configuration:

    2 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    2

  • Number of LEDs in Array:

    2

  • Number of Terminals:

    4

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    9.7 mm

  • Packing Method:

    BULK

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Pitch:

    2.5 mm

553-0711 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 553-0711 is 0°C to 70°C (32°F to 158°F).
  • To ensure proper ESD protection, handle the 553-0711 in an ESD-controlled environment, wear an ESD strap, and use ESD-safe packaging and materials.
  • The maximum power consumption of the 553-0711 is 1.5W, with a typical operating current of 30mA.
  • Yes, the 553-0711 is designed to withstand high-vibration environments, with a vibration tolerance of up to 10G.
  • The recommended storage temperature range for the 553-0711 is -40°C to 85°C (-40°F to 185°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

553-0711 Overview

Use the download button to access the 553-0711 schematic symbol, PCB footprint, and 3D model.
