5535655-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

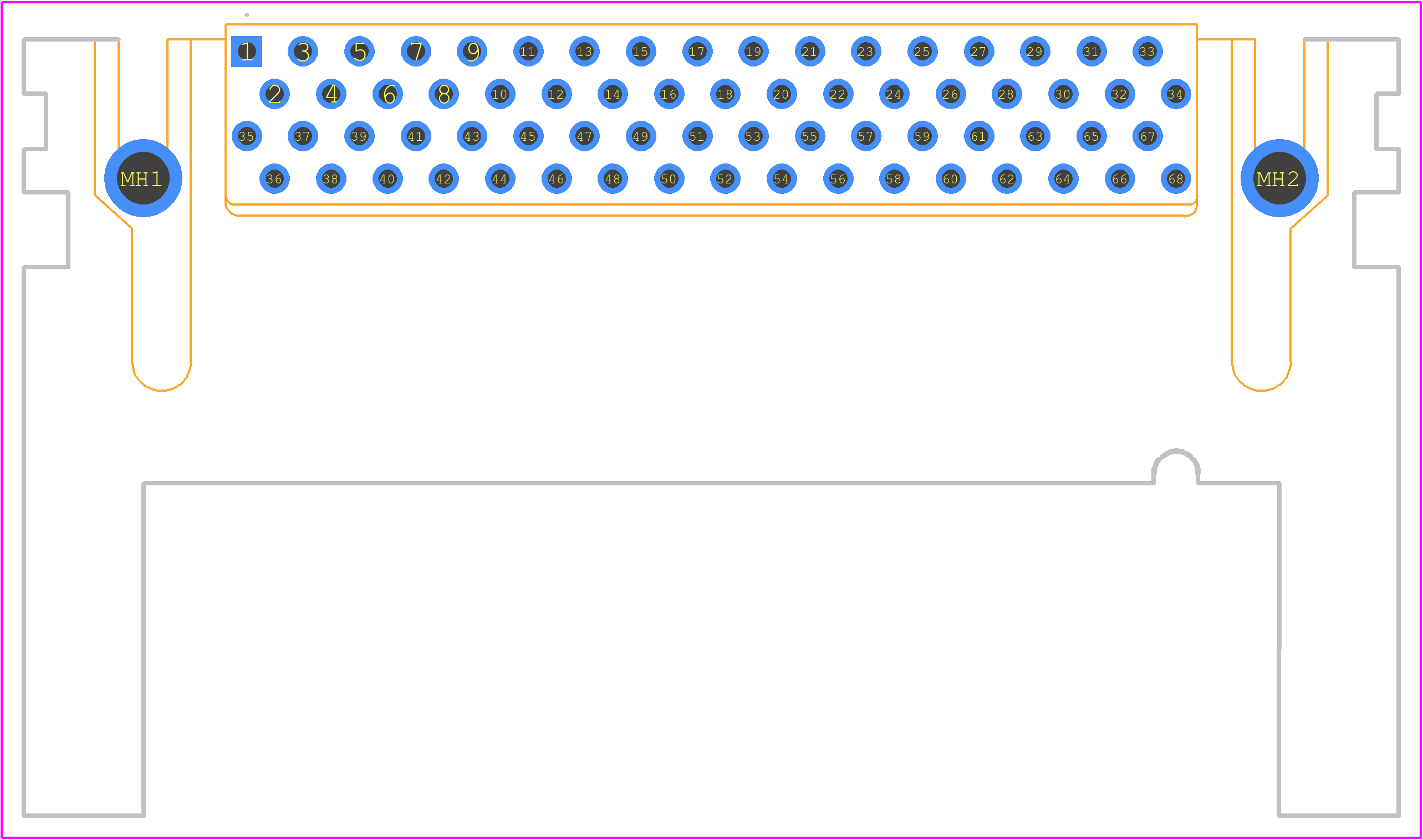

5535655-1 - TE Connectivity PCB footprint - Other - Other - 5535655-1-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5535655-1
Part Number 5535655-1
Manufacturer TE Connectivity
Pin Count 70
Part Category Connector
Package Category Other
Footprint Name Other - 5535655-1-3
Released Date Sep 30, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

5535655-1 Details

Manufacturer Part Number:
5535655-1
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks, 5 Days
Manufacturer:
TE Connectivity
YTEOL:
0
Body Breadth:
0.378 inch
Body Depth:
1.378 inch
Body Length:
2.44 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
RND PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
4
Number of Ports:
1
Number of Rows Loaded:
2
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
1.905 mm
Plating Thickness:
30u inch
Terminal Length:
0.118 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
68

5535655-1 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
Yes, the 5535655-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
The operating temperature range for the 5535655-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
The 5535655-1 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
Yes, the 5535655-1 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or support for specific guidance.
