5536386-5 - TE Connectivity

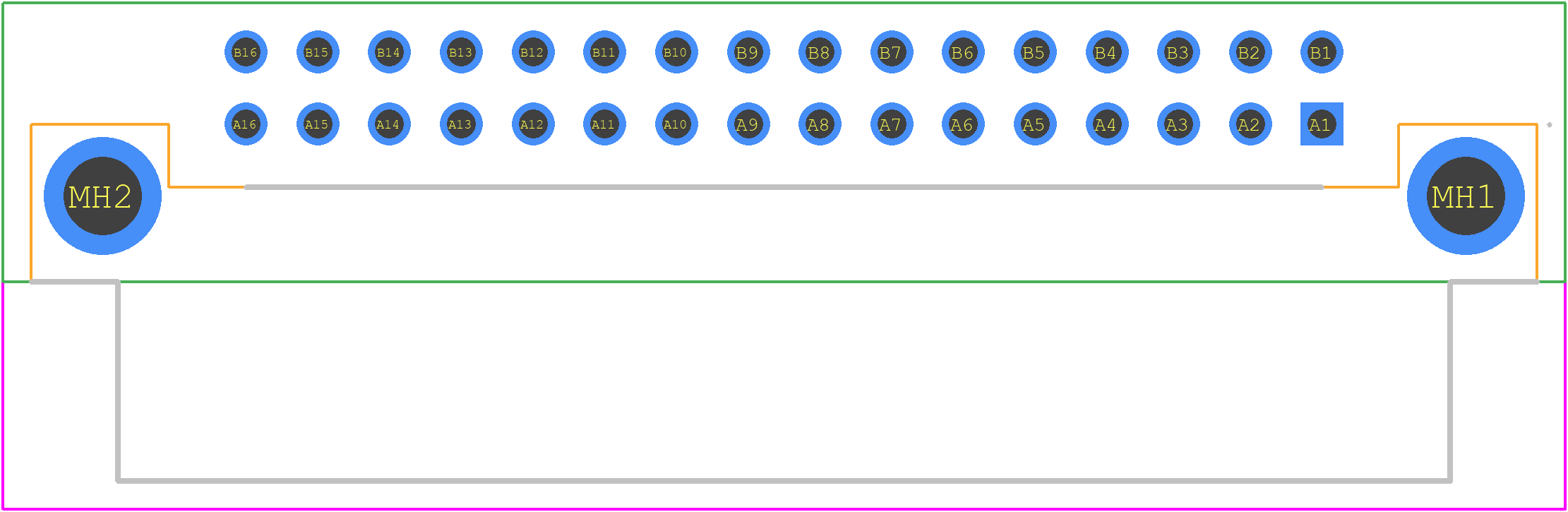

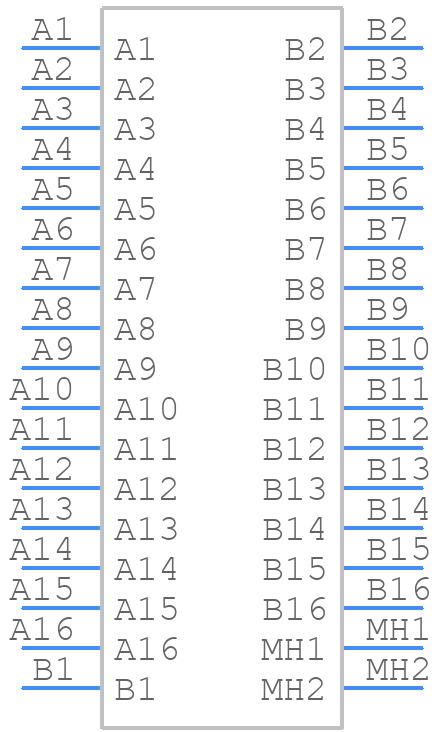

5536386-5 Details

• Manufacturer Part Number:

  5536386-5

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  9 Weeks, 3 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.337 inch

• Body Depth:

  0.497 inch

• Body Length:

  2.1 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .9452 N

• Insulation Resistance:

  1000000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,B

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  CSA, UL

• Terminal Length:

  0.104 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  32

• Withdrawl Force-Min:

  .139 N
