5536501-2 - TE Connectivity

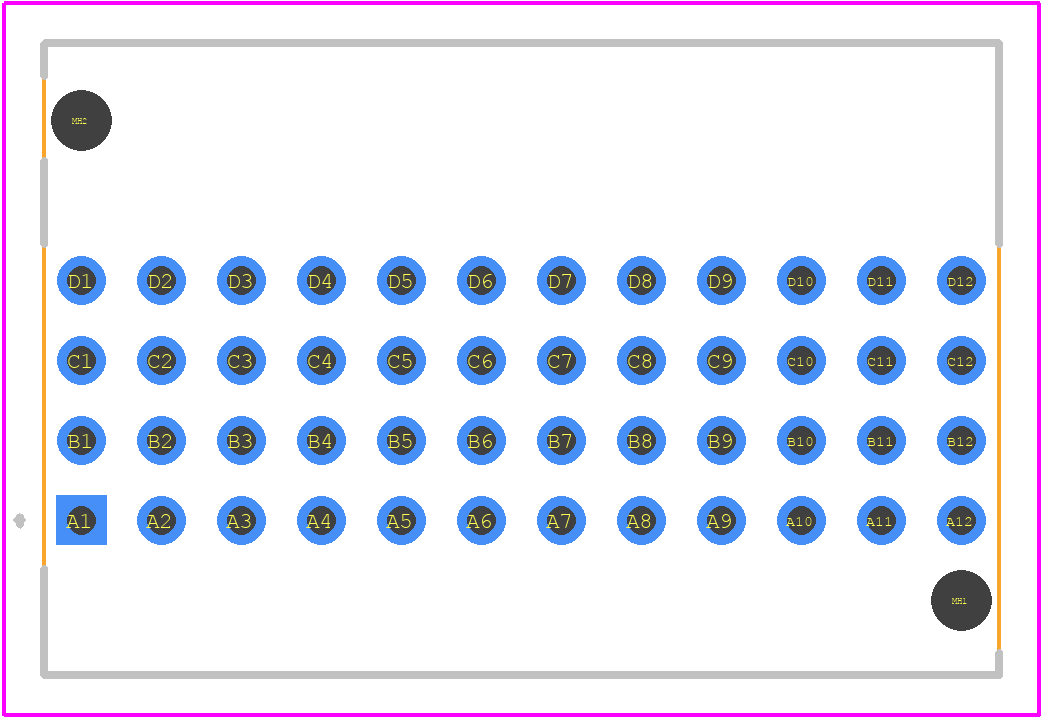

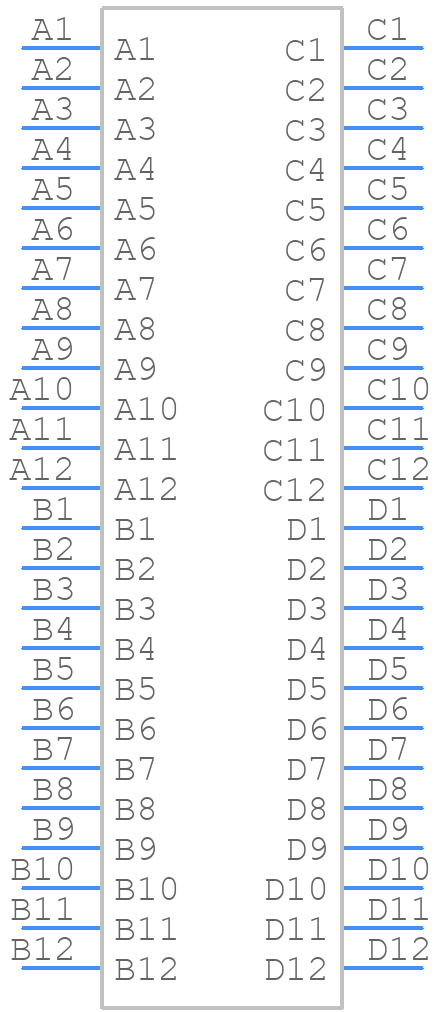

5536501-2 Details

• Manufacturer Part Number:

  5536501-2

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  Z-PACK

• Board Mounting Option:

  PEG

• Body Breadth:

  0.622 inch

• Body Depth:

  0.669 inch

• Body Length:

  0.94 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  250 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .69778 N

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -25 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Plating Thickness:

  30u inch

• Reference Standard:

  UL, CSA

• Terminal Length:

  0.167 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  48

• Withdrawl Force-Min:

  .11954 N
