553SCMGI - Renesas Electronics

Description: The 553S is a low skew, single input to four output, LVCMOS clock buffer. The 553S has best in class additive phase Jitter of sub 50 fsec.

Download 553SCMGI Model

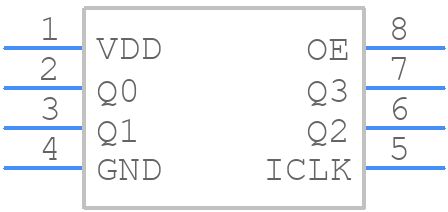

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
553SCMGI - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 2.0 × 2.0 × 0.5 mm, 8-DFN
click to zoom
3D Models
553SCMGI - Renesas Electronics  - 3D model - Small Outline No-lead - 2.0 × 2.0 × 0.5 mm, 8-DFN
click to zoom

553SCMGI Details

  • Manufacturer Part Number:

    553SCMGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    COL

  • Pin Count:

    8

  • Manufacturer Package Code:

    CMG8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    553

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

553SCMGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 553SCMGI is -40°C to 125°C.
  • The power-up sequence for the 553SCMGI should be VCC, then VREF, and finally CLKIN. This ensures proper initialization and prevents latch-up.
  • The maximum allowable voltage on the input pins of the 553SCMGI is VCC + 0.5V to prevent damage from electrostatic discharge.
  • To ensure EMC with the 553SCMGI, use a ground plane, decouple power supplies, and use shielding and filtering as necessary to minimize electromagnetic interference.
  • The recommended layout and routing for the 553SCMGI involves keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths and loops.
