- Part Number 555153-1
- Manufacturer TE Connectivity
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 555153-1-2
- Released Date Dec 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
555153-1 Details
-
Manufacturer Part Number:
555153-1
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
TRAY PACKED & PC BOARD GROUND
-
Board Mounting Option:
SPLIT BOARD LOCK
-
Body Breadth:
0.495 inch
-
Body Depth:
0.72 inch
-
Body Length:
0.7 inch
555153-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by consulting with their technical support team.
-
Yes, the 555153-1 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
-
The 555153-1 connector is rated for operating temperatures between -40°C to 105°C and can withstand humid environments. However, it's crucial to follow proper sealing and potting procedures to ensure the connector's reliability in harsh environments. Consult TE Connectivity's environmental testing reports for more information.
-
While it's possible to use a different wire gauge or type, it's not recommended. The 555153-1 connector is designed to work with specific wire gauges and types, and using a different one may compromise the connector's performance, reliability, or even safety. Consult TE Connectivity's documentation or technical support for guidance on wire selection.
-
To ensure proper mating and unmating, follow the recommended mating sequence and alignment guidelines provided in the datasheet or application notes. Also, ensure the connector is properly cleaned and free of debris before mating, and avoid applying excessive force during mating or unmating.
Trust Checks
Expert Contribution
System Verified
Community Approved
555153-1 Overview

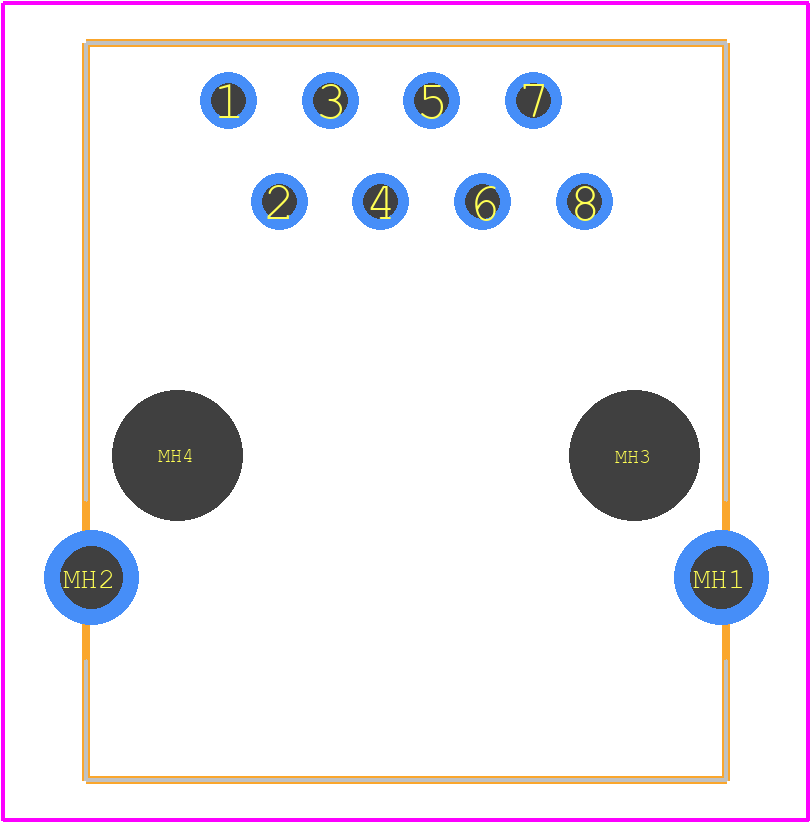

Use the download button to access the 555153-1 schematic symbol, PCB footprint, and 3D model.
