5552740-1 - TE Connectivity

Description: PCB D-Sub Connectors, Receptacle, Cable-to-Board, 24 Position, 2.16 mm [.085 in] Centerline, 2 Row, Standard Profile, Right Angle, PCB Mount Retention

Download 5552740-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5552740-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

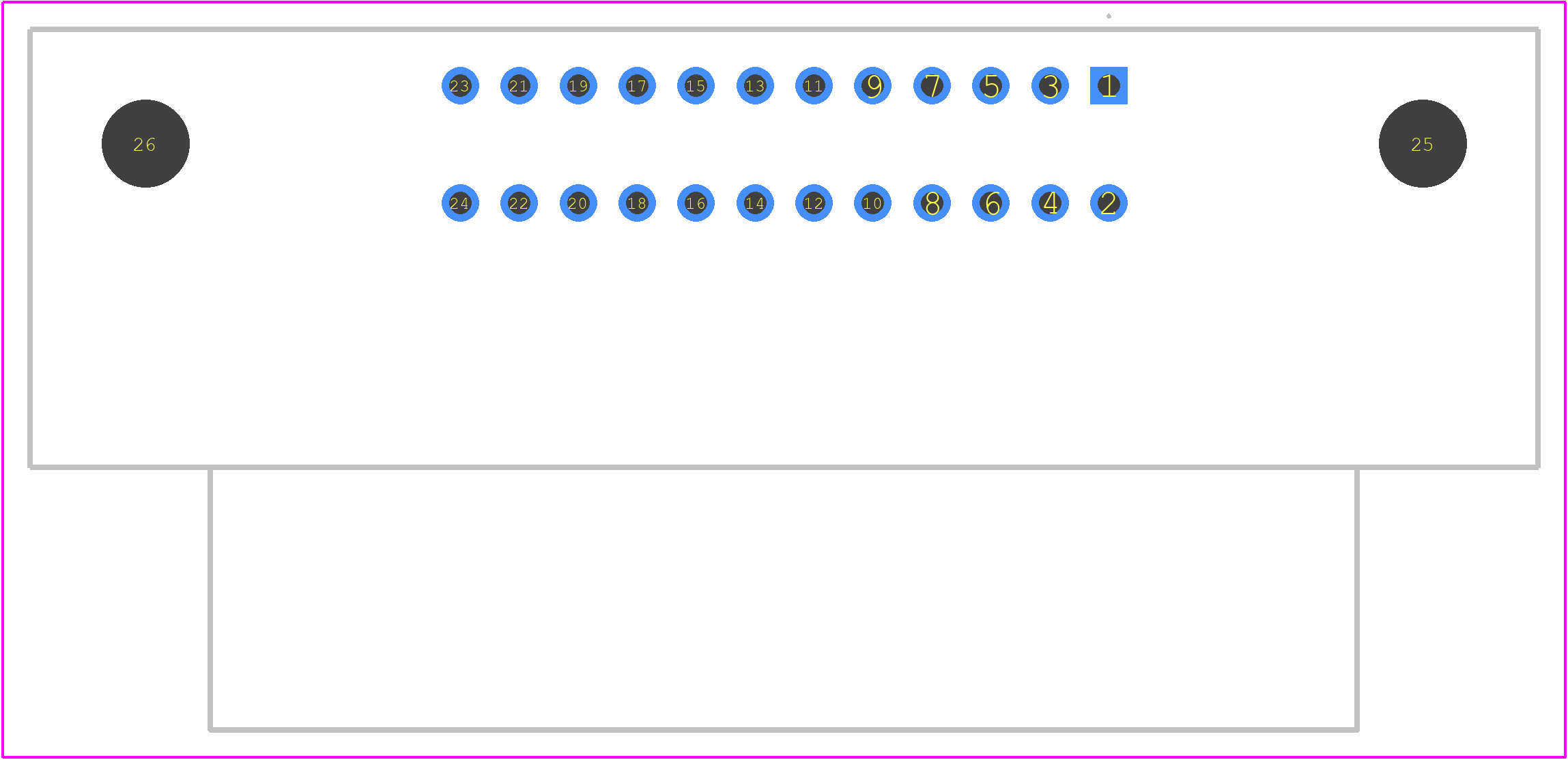

5552740-1 - TE Connectivity PCB footprint - Other - Other - 5552740-1-3
click to zoom
3D Models
5552740-1 - TE Connectivity - 3D model - Other - 5552740-1-3
click to zoom

5552740-1 Details

  • Manufacturer Part Number:

    5552740-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    0.63 inch

  • Body Length:

    2.175 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3.5A

  • Mating Contact Pitch:

    0.085 inch

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.2926 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    3.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

5552740-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5552740-1 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5552740-1 connector has a IP67 rating, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 5552740-1 connector. However, you should consult with TE Connectivity's technical support or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's requirements.
  • Yes, it's essential to follow proper PCB layout guidelines for the 5552740-1 connector to ensure reliable connections and prevent damage. TE Connectivity provides PCB layout recommendations in their documentation, which should be consulted during the design process.
