Part Image

5552745-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | Configuration Features: Number of Rows 2 | PCB Mount Orientation Right Angle | Number of Positions 64 | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Current Rating (Max) 3.5 AMP | Contact Base Material Copper Alloy | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Gold | Dimensions: Row-to-Row Spacing .169 INCH | Panel Thickness (Recommended) 1.57 MM | Row

Download 5552745-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5552745-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

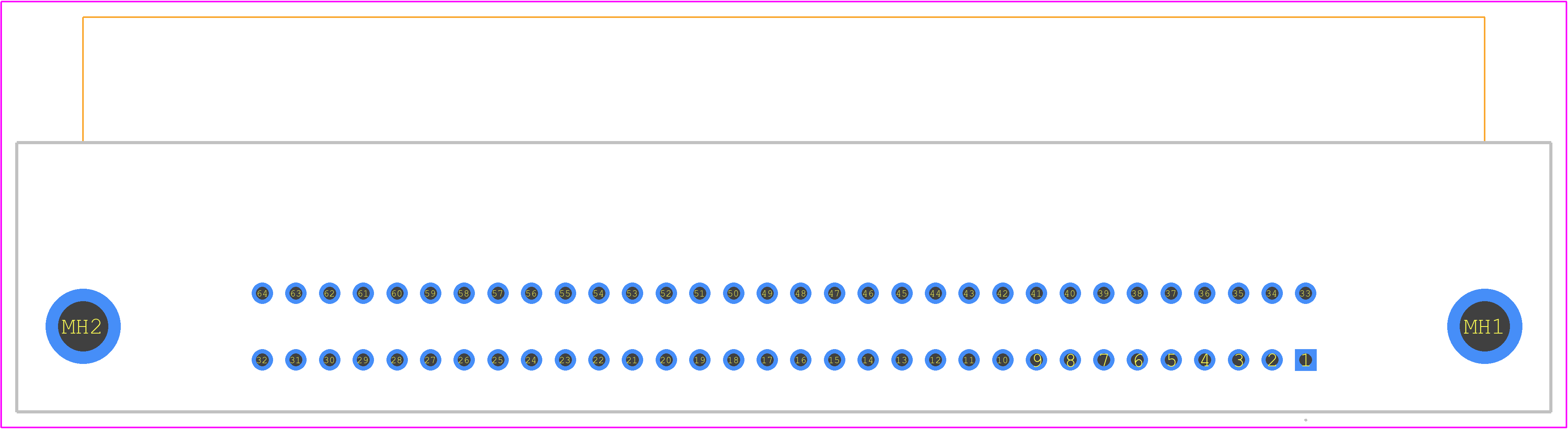

5552745-1 - TE Connectivity PCB footprint - Other - Other - 5552745-1-2
click to zoom
3D Models
5552745-1 - TE Connectivity - 3D model - Other - 5552745-1-2
click to zoom

5552745-1 Details

  • Manufacturer Part Number:

    5552745-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Body Breadth:

    0.63 inch

  • Body Length:

    3.875 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3.5A

  • Mating Contact Pitch:

    0.085 inch

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.2926 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    3.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.187 inch

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

5552745-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5552745-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's recommended to consult with TE Connectivity's technical support or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 5552745-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required performance and reliability standards.
  • The 5552745-1 connector is designed to meet the requirements of IEC 61984 and is suitable for use in harsh environments. However, it's essential to consult with TE Connectivity's technical support or a qualified engineer to determine the connector's suitability for specific environmental conditions and applications.
