5553811-1 - TE Connectivity

Description: Body Features: Shield Plating Material Nickel | Shield Material Die Cast Metal | Primary Product Color Black | Connector Profile Standard | Configuration Features: Number of Positions 24 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Dimensions: Row-to-Row Spacing 4.3 MM | Row-to-Row Spacing

Download 5553811-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

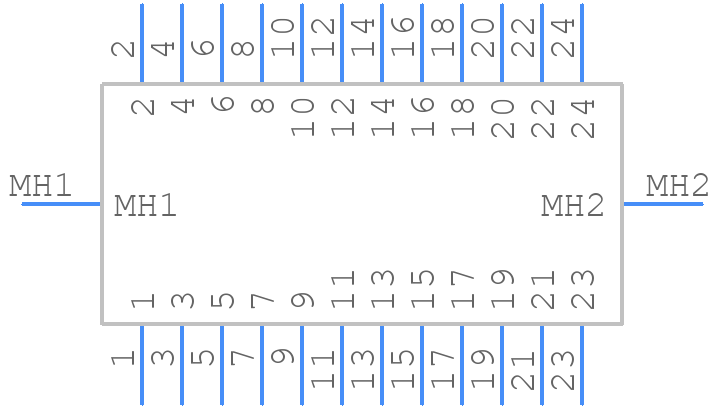

5553811-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

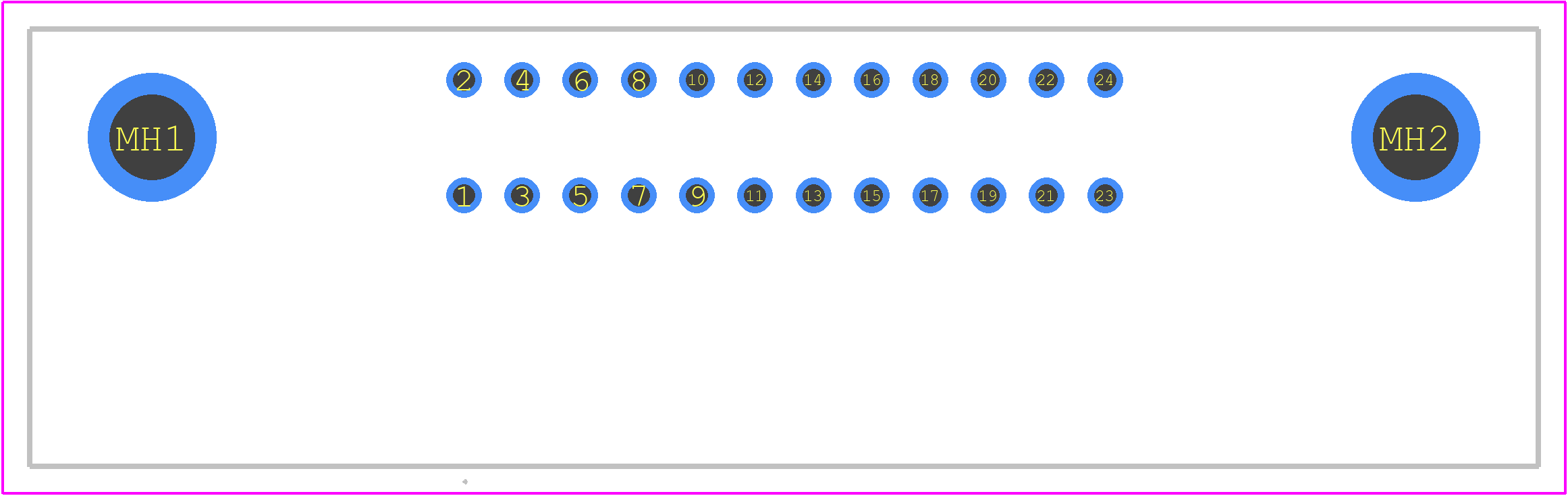

5553811-1 - TE Connectivity PCB footprint - Other - Other - 5553811-1-1
click to zoom
3D Models
5553811-1 - TE Connectivity - 3D model - Other - 5553811-1-1
click to zoom

5553811-1 Details

  • Manufacturer Part Number:

    5553811-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    11841

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Shell Finish:

    NICKEL

  • Shell Material:

    METAL

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    SOLDER

5553811-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5553811-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 5553811-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • Yes, the 5553811-1 connector is designed to be resistant to harsh environments. It meets the IP67 rating, which means it can withstand exposure to water and dust. Additionally, the connector's materials are resistant to corrosion and can withstand exposure to certain chemicals.
  • The 5553811-1 connector is rated for up to 13A per contact, making it suitable for use in high-current applications. However, it's essential to ensure that the connector is properly sized and configured for the specific application to prevent overheating and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5553811-1 Overview

Use the download button to access the 5553811-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55538, or try a keyword search, such as Telecom and Datacom Connectors
