Part Image

5555140-1 - TE Connectivity

Description: Shielded Mod jack 6/6 panel+pcb Grd SE

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

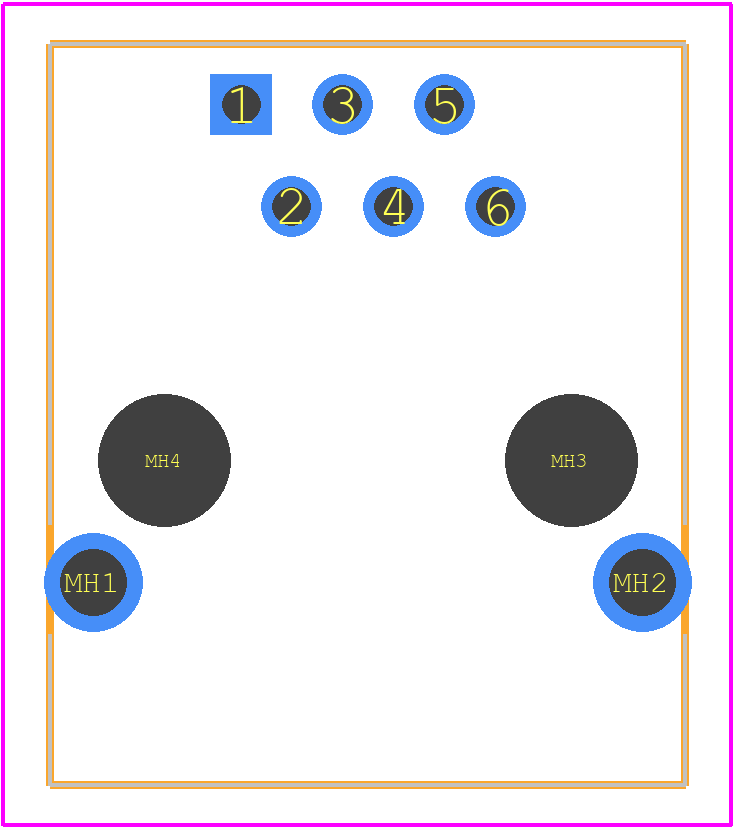

5555140-1 - TE Connectivity PCB footprint - Other - Other - 5555140-1-4
click to zoom

3D Models

5555140-1 - TE Connectivity  - 3D model - Other - 5555140-1-4
click to zoom

5555140-1 Details

  • Manufacturer Part Number:

    5555140-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    1.74

  • YTEOL:

    8.1

  • Additional Feature:

    LOW PROFILE

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.495 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    0.625 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Durability:

    750 Cycles

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    MOUNTING FLANGE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Subcategory:

    Telecom and Datacom Connectors

  • Terminal Length:

    0.15 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

5555140-1 Overview

Use the download button to access the 5555140-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55551, or try a keyword search, such as Telecom and Datacom Connectors
