5556622-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Shield Material Carbon Steel | Insert Material Brass | Connector Profile Standard | Shield Plating Material Nickel | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 64 | Contact Features: Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Termination Area Plating Material Tin | Dimensions: Row-to-Row Spacing 4.3 MM

Download 5556622-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5556622-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

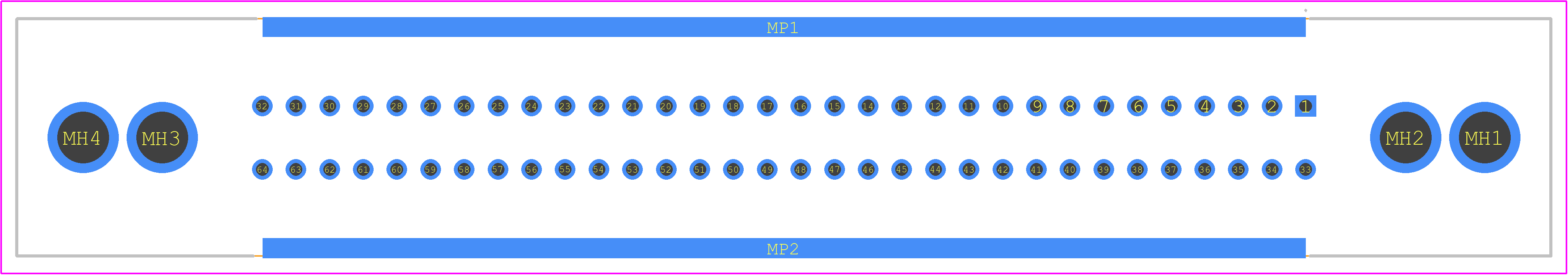

5556622-1 - TE Connectivity PCB footprint - Other - Other - 5556622-1-2
click to zoom
3D Models
5556622-1 - TE Connectivity - 3D model - Other - 5556622-1-2
click to zoom

5556622-1 Details

  • Manufacturer Part Number:

    5556622-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.6 inch

  • Body Length:

    3.875 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYPHENYLENE OXIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Pitch:

    0.085 inch

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    14702

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    PANEL

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.064 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.18 inch

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

5556622-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by consulting with their technical support team.
  • Yes, the 5556622-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
  • The 5556622-1 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environmental use. If you need a connector for outdoor or harsh environments, consider using a connector with a higher IP rating or consult with TE Connectivity for alternative options.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 5556622-1 connector. However, you should consult with TE Connectivity's technical support team to ensure the connector can accommodate the desired wire size and to discuss any potential performance or reliability implications.
  • Yes, it's essential to follow proper PCB layout guidelines when using the 5556622-1 connector. Ensure the PCB layout allows for easy connector insertion and removal, and that the PCB material and thickness can support the connector's mechanical stress. Consult the TE Connectivity application notes or PCB layout guidelines for more information.
