556882-3 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Right Angle | Number of Signal Positions 0 | Number of Positions 3 | Number of Power Positions 3 | Number of Rows 1 | Contact Features: Contact Type Tab | Contact Base Material Copper Alloy | Contact Layout Inline | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Mating Area Plating Material Thickness 3.81 MICM | Contact Current Rating (Max) 35 AMP | Contact Mating Area Plating Material Tin | PCB Contact Termination Area Plating Mater

Download 556882-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
556882-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

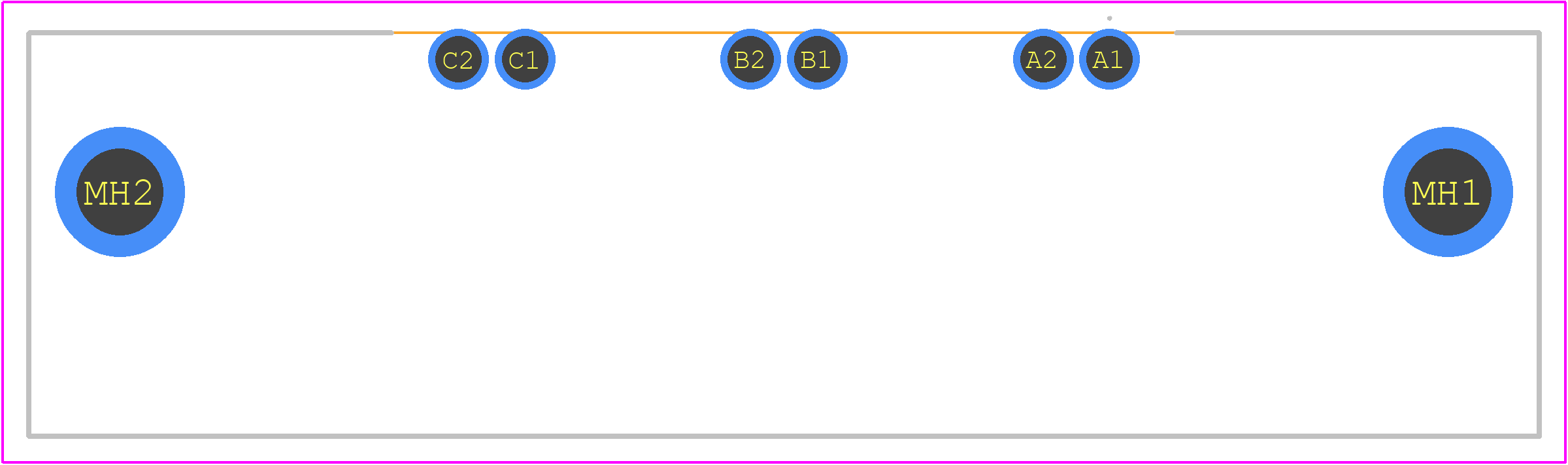

556882-3 - TE Connectivity PCB footprint - Other - Other - 556882-3-1
click to zoom
3D Models
556882-3 - TE Connectivity - 3D model - Other - 556882-3-1
click to zoom

556882-3 Details

  • Manufacturer Part Number:

    556882-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    73 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Additional Feature:

    AMPINNERGY, POLARIZED

  • Body Breadth:

    0.69 inch

  • Body Depth:

    0.57 inch

  • Body Length:

    2.28 inch

  • Body/Shell Style:

    RECEPTACLE

  • Cable Types:

    STRANDED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    35A

  • Mating Information:

    556879-3

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    150u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    35 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.193 inch

  • Terminal Pitch:

    11.18 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

556882-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 556882-3 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque value to maintain reliable connections.
  • The 556882-3 connector has a rating of IP67, which means it can withstand temporary immersion in water and exposure to dust. However, it's essential to ensure that the connector is properly sealed and protected from the environment to maintain its performance and reliability.
  • The 556882-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 556882-3 connector is designed for use with AWG 20-18 wires, it's possible to use it with other wire sizes. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
