5569-10A1 - Molex

Description: Molex 5569, 4.2mm Pitch, 10 Way, 2 Row, Right Angle PCB Header, Through Hole

Download 5569-10A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569-10A1 - Molex - PCB symbol
click to zoom
PCB Footprints

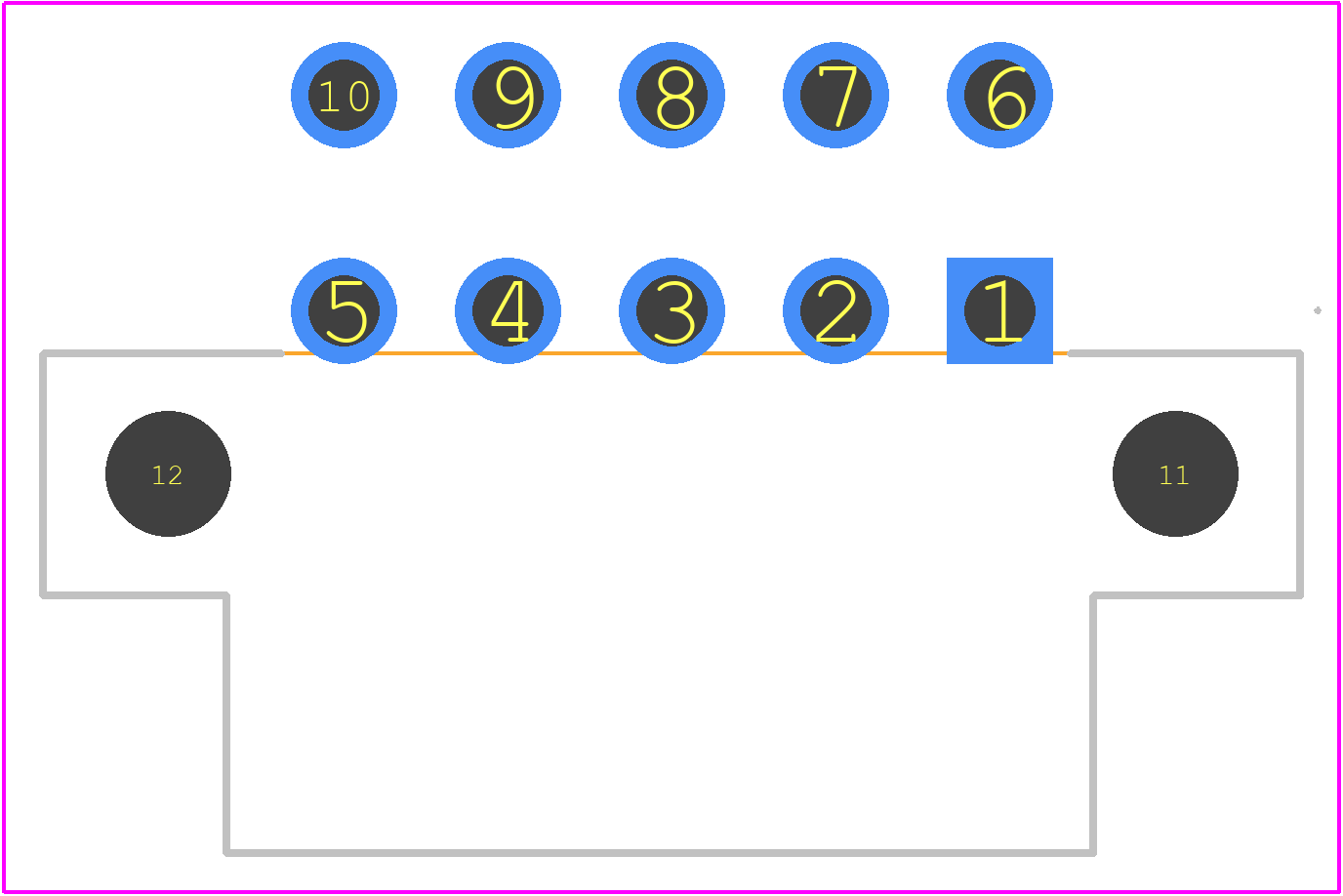

5569-10A1 - Molex PCB footprint - Other - Other - 5569-10A1-2
click to zoom
3D Models
5569-10A1 - Molex - 3D model - Other - 5569-10A1-2
click to zoom

5569-10A1 Details

  • Manufacturer Part Number:

    5569-10A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Additional Feature:

    RATED CURRENT(POWER):13A, POLARIZED

  • Body Breadth:

    0.449 inch

  • Body Depth:

    0.764 inch

  • Body Length:

    1.268 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA, UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-2

5569-10A1 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the keyway first, followed by the pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 5569-10A1 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and termination procedures to ensure reliable performance.
  • The 5569-10A1 connector is rated for operation in temperatures ranging from -40°C to 105°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5569-10A1 connector is designed to meet IP67 standards, which means it can withstand exposure to water and dust. However, it's essential to follow proper sealing and protection procedures to ensure reliable performance in harsh environments.
  • The recommended torque value for the 5569-10A1 connector's screw terminals is 0.5-1.5 Nm. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569-10A1 Overview

Use the download button to access the 5569-10A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5569-, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
