5569254-1 - TE Connectivity

Description: Body Features: Connector Profile Low | Grounding Tab Plating Material Tin over Copper | Shield Material Copper Alloy | Modular Jack Latch Orientation Standard - Latch Down | Shield Plating Material Tin over Copper | Configuration Features: Number of Loaded Positions 8 | Port Matrix Configuration 2 x 8 | Number of PCB Ground Tabs 2 | Port Configuration Multiple Ports | Multiple Port Configuration Stacked | PCB Mount Orientation Right Angle | Status Light Type Not Illuminated | Number of Positions 8 | Connect

Download 5569254-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569254-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

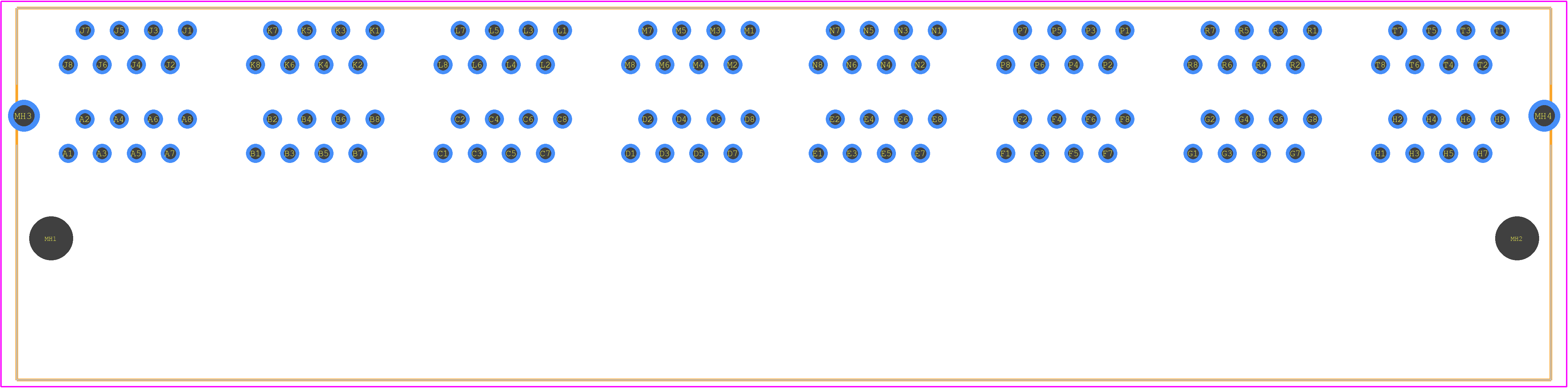

5569254-1 - TE Connectivity PCB footprint - Other - Other - 5569254-1-5
click to zoom
3D Models
5569254-1 - TE Connectivity - 3D model - Other - 5569254-1-5
click to zoom

5569254-1 Details

  • Manufacturer Part Number:

    5569254-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.97 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    PCT POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5569254-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5569254-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard, making it suitable for use in applications with high vibration levels.
  • The 5569254-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, the 5569254-1 connector is designed for automated assembly and is compatible with pick-and-place machines. The connector's design and packaging are optimized for efficient and reliable automated assembly.
  • The 5569254-1 connector is designed for use with 20-24 AWG wire sizes. It's recommended to use wires with a temperature rating of at least 125°C (257°F) and insulation that meets the requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569254-1 Overview

Use the download button to access the 5569254-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55692, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
