5569259-1 - TE Connectivity

Description: Body Features: Shield Material Copper Alloy | Shield Plating Material Tin over Copper | Modular Jack Latch Orientation Standard - Latch Down | Grounding Tab Plating Material Tin over Copper | Connector Profile Low | Configuration Features: Status Light Type Not Illuminated | Port Configuration Multiple Ports | Multiple Port Configuration Stacked | Number of Positions 8 | Connector Contact Density Standard | Number of PCB Ground Tabs 13 | Number of Loaded Positions 8 | PCB Mount Orientation Right Angle | Por

Download 5569259-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569259-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

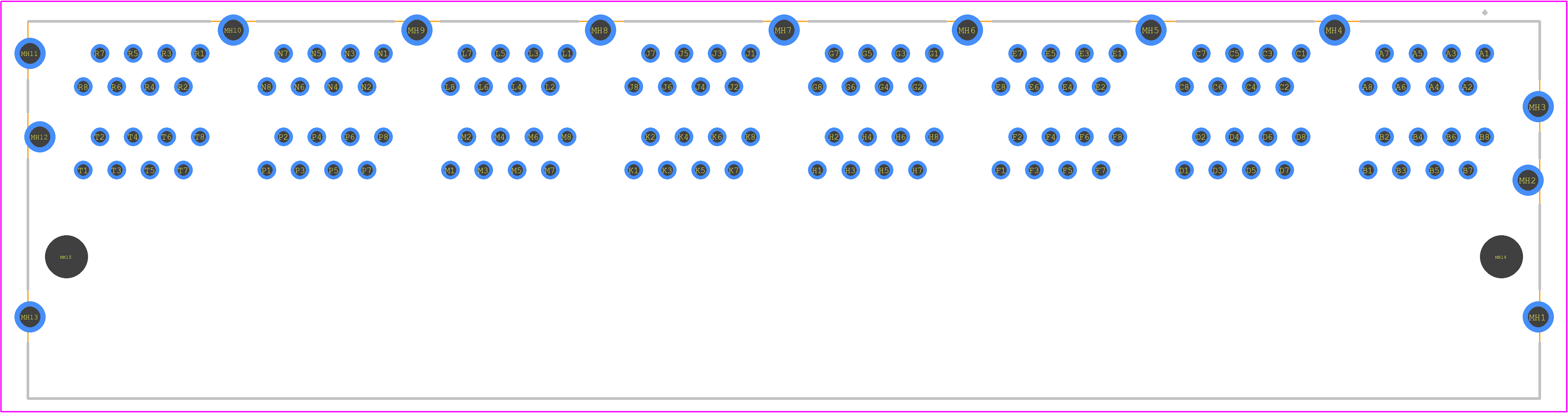

5569259-1 - TE Connectivity PCB footprint - Other - Other - 5569259-1-2
click to zoom
3D Models
5569259-1 - TE Connectivity - 3D model - Other - 5569259-1-2
click to zoom

5569259-1 Details

  • Manufacturer Part Number:

    5569259-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.995 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    PCT POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5569259-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5569259-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 5569259-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • The 5569259-1 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If your application involves exposure to high humidity, chemicals, or other corrosive substances, you may need to consider additional protection measures or alternative connector options.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569259-1 Overview

Use the download button to access the 5569259-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55692, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
