5569261-1 - TE Connectivity

Description: Body Features: Shield Plating Material Tin over Copper | Shield Material Copper Alloy | Modular Jack Latch Orientation Standard - Latch Down | Connector Profile Low | Grounding Tab Plating Material Tin over Copper | Configuration Features: Status Light Type Not Illuminated | Number of Loaded Positions 8 | Number of PCB Ground Tabs 6 | Port Matrix Configuration 2 x 3 | Connector Contact Density Standard | Number of Positions 8 | Port Configuration Multiple Ports | PCB Mount Orientation Right Angle | Multiple

Download 5569261-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569261-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

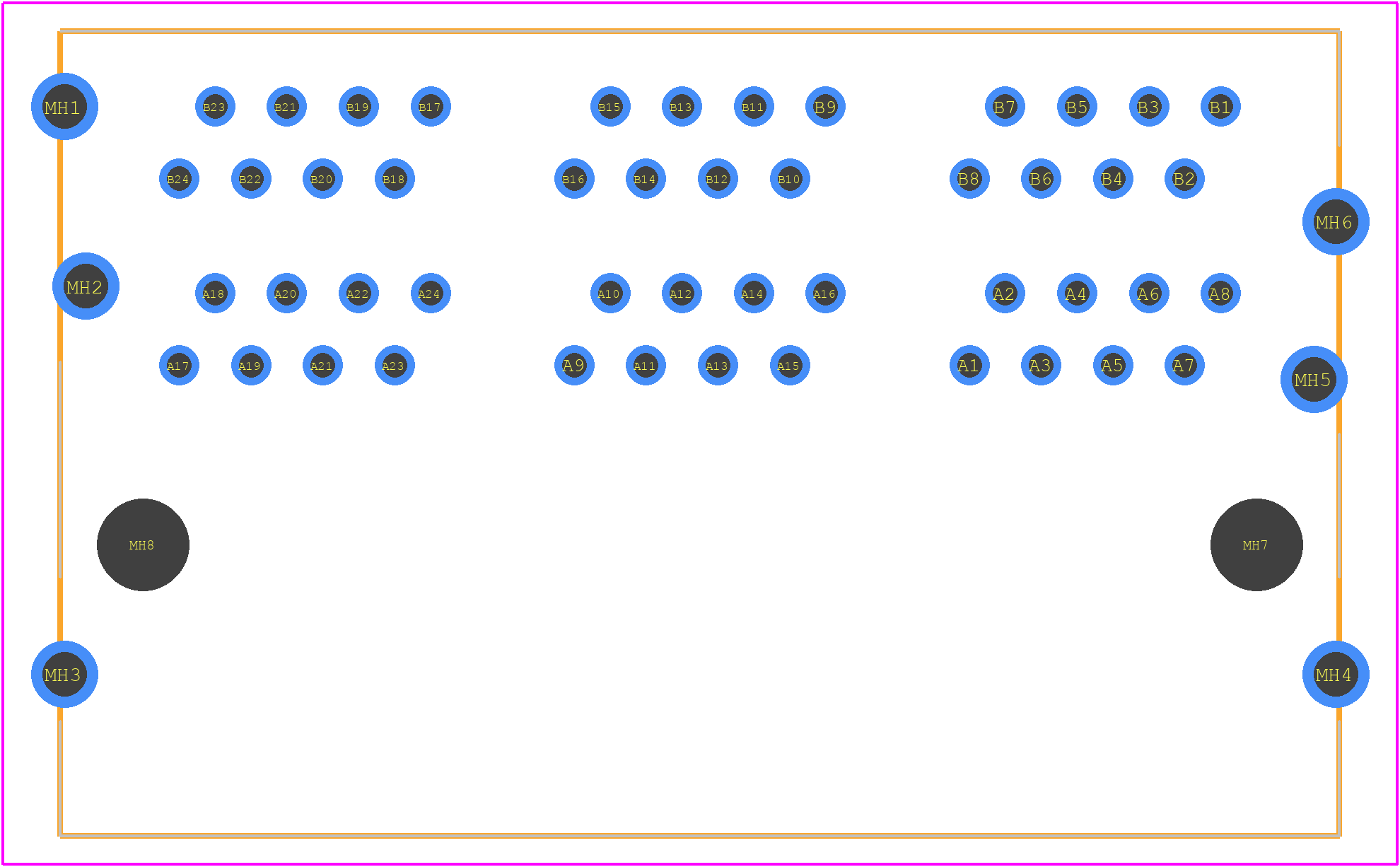

5569261-1 - TE Connectivity PCB footprint - Other - Other - 5569261-1-2
click to zoom
3D Models
5569261-1 - TE Connectivity - 3D model - Other - 5569261-1-2
click to zoom

5569261-1 Details

  • Manufacturer Part Number:

    5569261-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.995 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    PCT POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5569261-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 5569261-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5569261-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5569261-1 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure the connector is properly sealed and protected from moisture and contaminants.
  • Yes, the 5569261-1 connector is designed to be compatible with other TE Connectivity products. However, it's essential to verify compatibility and ensure proper mating and assembly with third-party components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569261-1 Overview

Use the download button to access the 5569261-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55692, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
