Description:The 557-06 is a two to four differential clock mux designed for use in PCI-Express applications. The device selects one of the two differential HCSL input pairs and fans out to four pairs of differential HCSL or LVDS outputs.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The power-up sequence is critical for the 557GI-06LF. Renesas recommends a specific power-up sequence, which involves powering up the VCC pin first, followed by the VDD pin, and then the input signals. This sequence helps prevent latch-up and ensures proper device operation.
Renesas recommends implementing EMI and ESD protection measures, such as using TVS diodes, ferrite beads, and capacitors, to ensure the device operates reliably in noisy environments. Additionally, following proper PCB design and layout guidelines can help minimize EMI and ESD issues.
Renesas provides a troubleshooting guide in their documentation, which includes steps to identify and resolve common issues. This may involve checking the power supply, signal integrity, and PCB layout, as well as using debugging tools and techniques to isolate the problem.
Renesas recommends implementing thermal management techniques, such as heat sinks, thermal interfaces, and airflow management, to ensure the device operates within its specified temperature range. This is particularly important in high-temperature applications, where the device may be exposed to elevated temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
557GI-06LF Overview

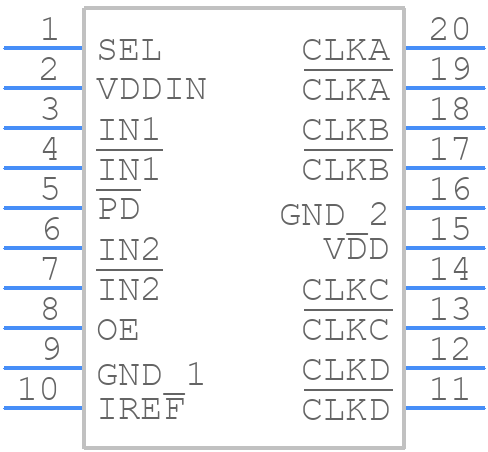

Use the download button to access the 557GI-06LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 557GI,
or try a keyword search, such as Clock Drivers
