56-712-003 - APITech

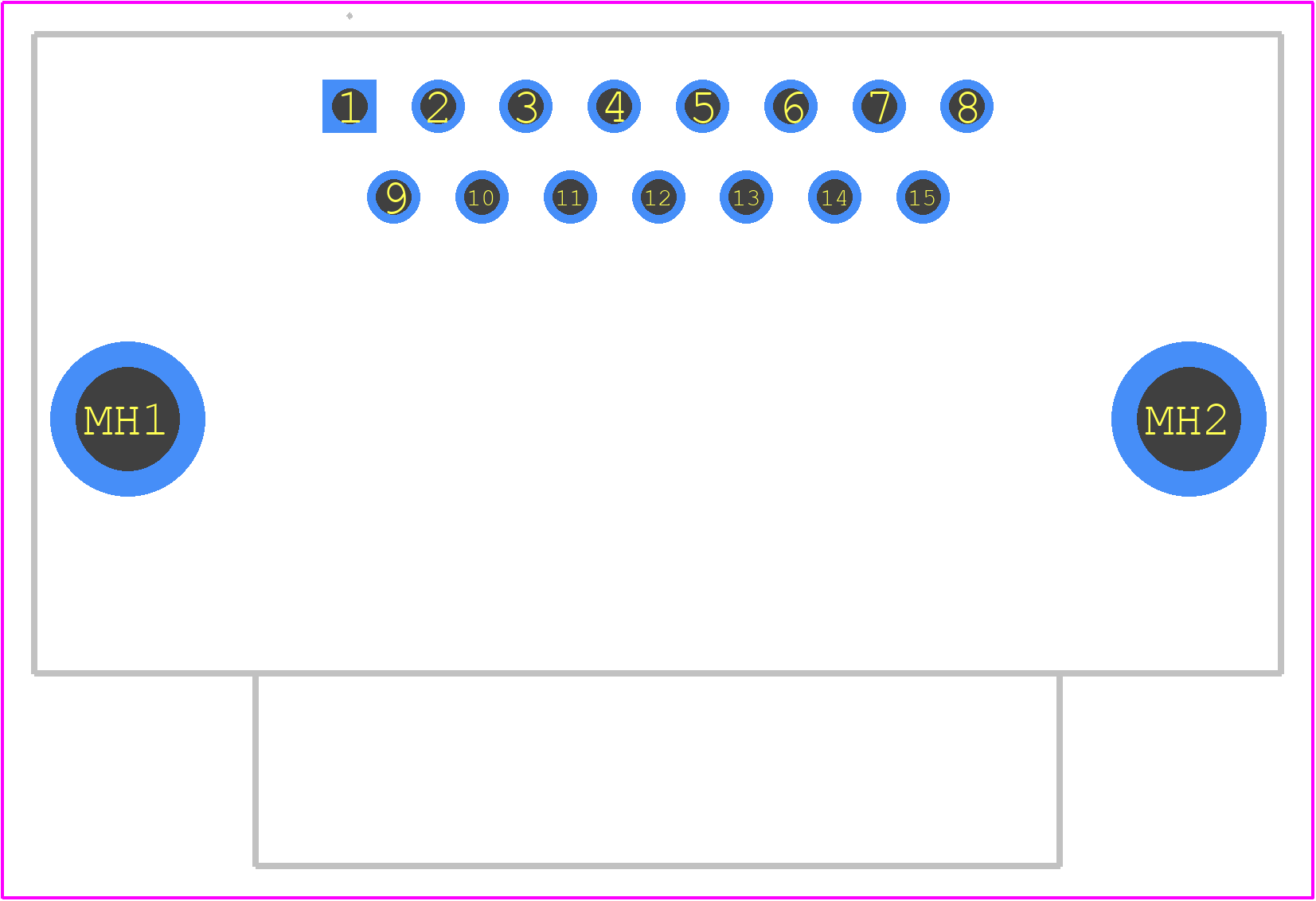

56-712-003 Details

• Manufacturer Part Number:

  56-712-003

• Part Life Cycle Code:

  Transferred

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Spectrum Control

• YTEOL:

  7

• Body Breadth:

  0.505 inch

• Body Depth:

  0.718 inch

• Body Length:

  1.541 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD (15) OVER NICKEL

• Contact Finish Termination:

  Gold Flash (Au)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  300VDC V

• Empty Shell:

  NO

• Filter Feature:

  YES

• IEC Conformance:

  NO

• Insulator Material:

  GLASS FILLED POLYESTER

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .12

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• Plating Thickness:

  15u inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Size:

  2/A

• Terminal Length:

  0.105 inch

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0
