- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 564-0100-222F
- Part Number 564-0100-222F
- Manufacturer Dialight
- Pin Count 6
- Part Category LED (Multiple)
- Package Category Other
- Footprint Name Other - 564 Series
- Released Date Oct 11, 2019
- Last Modified Date Dec 5, 2024 11:02 PM UTC
- Pinout / Pin List Click Here (Member Only)
564-0100-222F Details
-
Manufacturer Part Number:
564-0100-222F
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Dialight
-
YTEOL:
6
-
Color:
GREEN
-
Color@Wavelength:
Green
-
Configuration:
SEPARATE, 3 ELEMENTS
564-0100-222F Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the 564-0100-222F is -40°C to 85°C.
-
Yes, the 564-0100-222F is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture and UV exposure.
-
The typical lifespan of the 564-0100-222F is around 50,000 to 100,000 hours, depending on operating conditions and environmental factors.
-
Yes, the 564-0100-222F is designed to withstand moderate vibration levels, but it's essential to ensure proper mounting and securing to prevent damage or dislodging.
-
Yes, the 564-0100-222F can be used with dimming or PWM control, but it's essential to ensure the control signal is within the recommended frequency range and amplitude to avoid damage or malfunction.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
564-0100-222F Overview

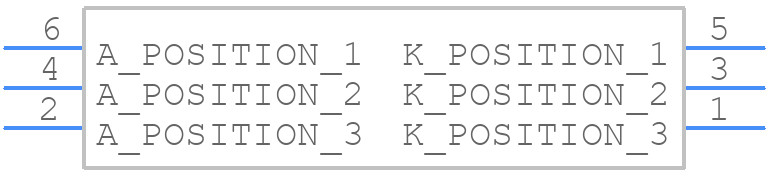

Use the download button to access the 564-0100-222F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 564-0,
or try a keyword search, such as Visible LEDs
