564-0100-322F - Dialight

Description: LED Circuit Board Indicators CBI 3MM TRE LEVEL

Download 564-0100-322F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

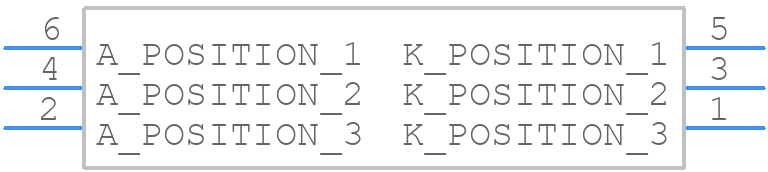

564-0100-322F - Dialight - PCB symbol
click to zoom
PCB Footprints
564-0100-322F - Dialight PCB footprint - Other - Other - 564 Series
click to zoom
3D Models
564-0100-322F - Dialight - 3D model - Other - 564 Series
click to zoom

564-0100-322F Details

  • Manufacturer Part Number:

    564-0100-322F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6.25

  • Color:

    YELLOW/GREEN

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • JESD-609 Code:

    e4

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    10.0/12.6 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    15.24 mm

  • Packing Method:

    BAG

  • Peak Wavelength:

    585/565 nm

  • Shape:

    ROUND

  • Surface Mount:

    NO

  • Terminal Finish:

    Copper/Nickel/Silver (Cu/Ni/Ag)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    60 deg

564-0100-322F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 564-0100-322F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 564-0100-322F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 564-0100-322F is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 564-0100-322F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 564-0100-322F can be used with dimming or PWM control, although the recommended frequency range for PWM control is 100-1000 Hz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

564-0100-322F Overview

Use the download button to access the 564-0100-322F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 564-0, or try a keyword search, such as Visible LEDs
