Spectrum Control recommends following the IPC-7351 standard for PCB land pattern and layout. Additionally, it's essential to ensure a solid ground plane under the component and to use a low-impedance path for the RF signal.
The 56F414-001-HD has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. This helps to dissipate heat efficiently. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
Spectrum Control recommends using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. Hand soldering is not recommended due to the component's small size and thermal sensitivity.
Common issues can be caused by improper PCB layout, poor soldering, or incorrect component orientation. Verify the PCB design and layout, check for soldering defects, and ensure the component is properly seated and oriented. Also, check the input and output impedance matching and the RF signal quality.
Yes, the component is sensitive to electrostatic discharge (ESD) and should be handled with ESD-safe materials and tools. Store the component in its original packaging or in a dry, ESD-safe environment to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
56F414-001-HD Overview

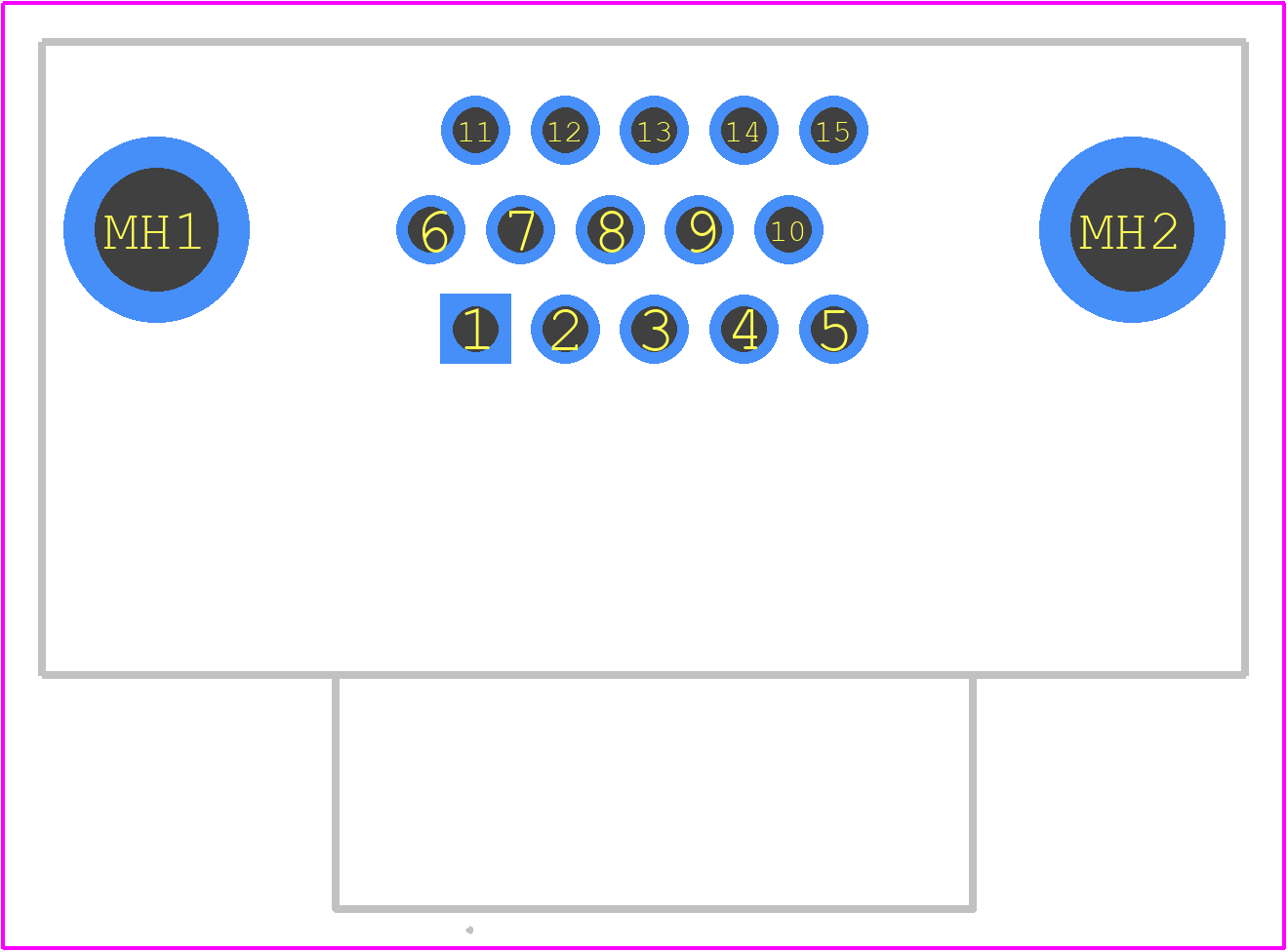

Use the download button to access the 56F414-001-HD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 56F41,
or try a keyword search, such as D Type Connectors
