The recommended PCB layout involves keeping the component away from high-frequency noise sources, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 150°C.
To ensure EMC, use shielding, keep the component away from antennas and high-frequency sources, and use filtering or shielding on the input/output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing signal loop areas.
The 56F422-001 is rated for operation from -40°C to 85°C, but it's recommended to derate the power handling at higher temperatures to ensure reliability and prevent thermal runaway.
Use a thermal imaging camera to identify hotspots, check for proper PCB layout and thermal management, and verify that the component is properly soldered. For malfunctioning, check the input/output signals, power supply, and ensure that the component is properly configured and initialized.
Yes, store the component in a dry, cool place, away from direct sunlight and moisture. Handle the component by the body, avoiding touching the pins or leads, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
56F422-001 Overview

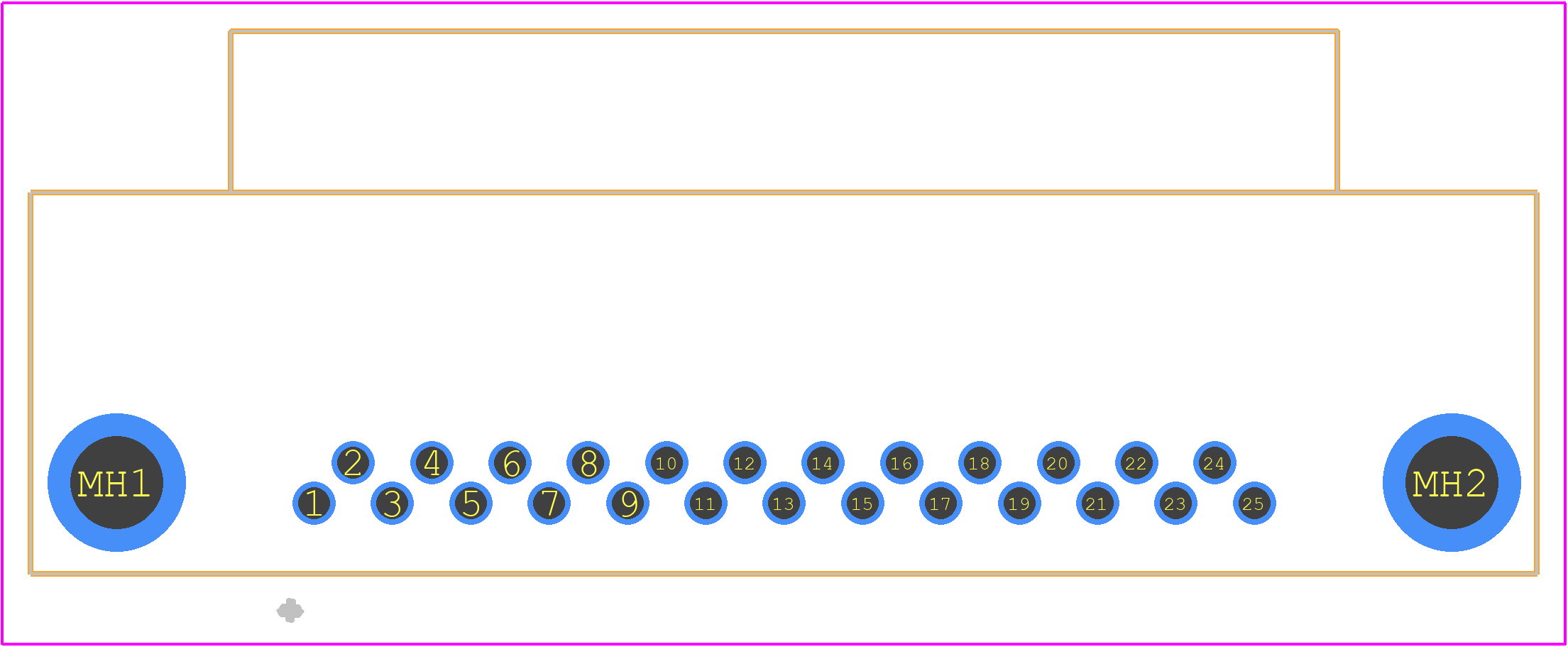

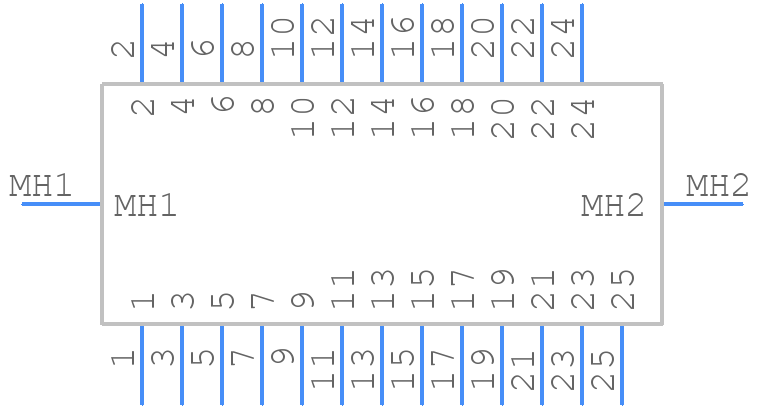

Use the download button to access the 56F422-001 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 56F42,
or try a keyword search, such as D Type Connectors
