56SP30-01B12N - Grayhill

Description: Rotary Switches Rotary Switch, Shaft/panel seal, PC mount, 30°, 1 deck, 1 pole/deck, 12 position/pole, non-shorting, fixed stop, 56SP30-01B12N

Download 56SP30-01B12N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 56SP30-01B12N model

Email notifications will be applied after download.

Send part feedback

Symbol

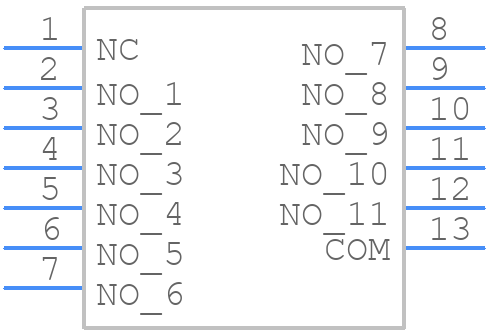

56SP30-01B12N - Grayhill - PCB symbol

PCB Footprints

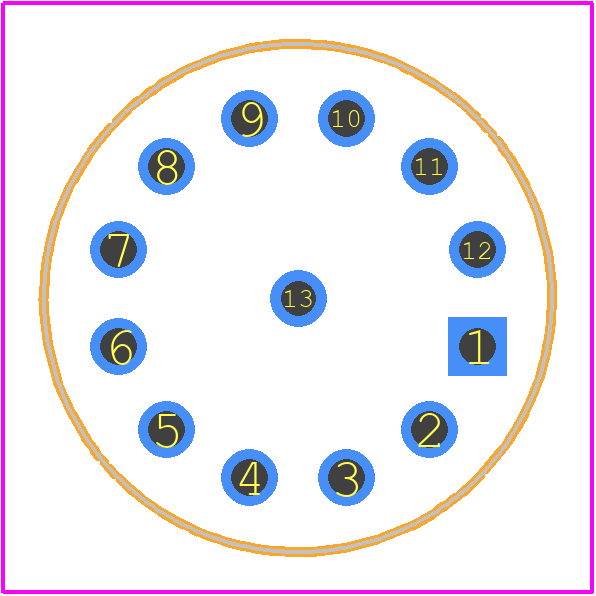

56SP30-01B12N - Grayhill PCB footprint - Other - Other - 56SDP30-01PAJS-7

3D Models

56SP30-01B12N - Grayhill - 3D model - Other - 56SDP30-01PAJS-7

Datasheet Download Datasheet
Stock & Prices Price & Stock for 56SP30-01B12N
Part Number 56SP30-01B12N
Manufacturer Grayhill
Pin Count 13
Part Category Switch
Package Category Other
Footprint Name Other - 56SDP30-01PAJS-7
Released Date Jul 9, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

56SP30-01B12N Details

Manufacturer Part Number:
56SP30-01B12N
Manufacturer:
Grayhill Inc

Trust Checks

Expert Contribution

System Verified

Community Approved

56SP30-01B12N Overview

Use the download button to access the 56SP30-01B12N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 56SP3, or try a keyword search, such as Rotary Switches
