- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 57-20240-23
- Part Number 57-20240-23
- Manufacturer Amphenol
- Pin Count 26
- Part Category Connector
- Package Category Other

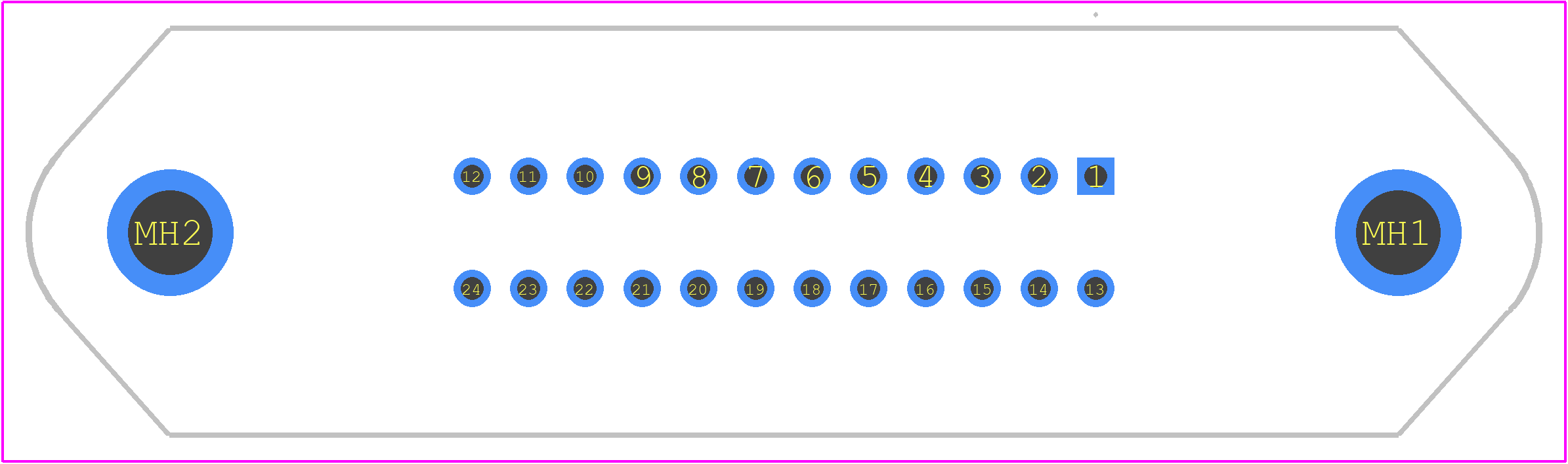

- Footprint Name Other - 57-20240-23-1
- Released Date Aug 16, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
57-20240-23 Details
-
Manufacturer Part Number:
57-20240-23
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7
-
Body Breadth:
0.61 inch
-
Body Depth:
0.37 inch
-
Body Length:
2.175 inch
-
Body/Shell Style:
RECEPTACLE
57-20240-23 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and the mating connector's specifications to ensure proper torque values.
-
Yes, the 57-20240-23 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's crucial to ensure that the connector is properly secured and mated to prevent damage or disconnection.
-
The 57-20240-23 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to apply the recommended sealing grommets and follow proper installation procedures to ensure the connector's environmental sealing.
-
The 57-20240-23 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consult the specific application requirements and the mating connector's specifications to ensure compatibility.
-
Yes, the 57-20240-23 connector is designed to be compatible with other Amphenol products, including cable assemblies and adapters. However, it's essential to consult the specific product datasheets and application notes to ensure compatibility and proper mating.
Trust Checks
Community Provided
System Verified
Community Approved
57-20240-23 Overview

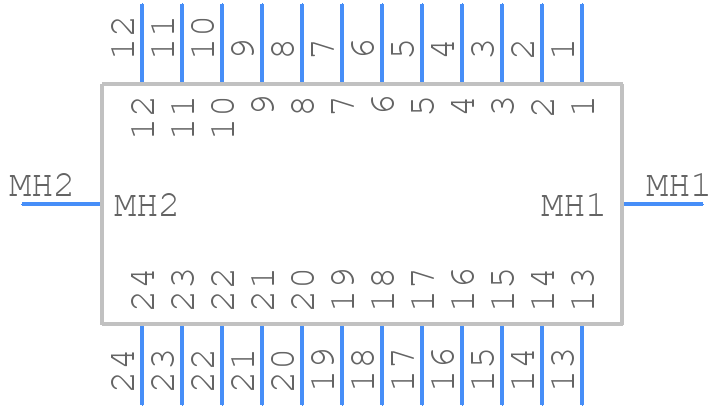

Use the download button to access the 57-20240-23 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57-20,
or try a keyword search, such as Telecom and Datacom Connectors
