570BAC000126DG footprint, schematic symbol and 3D model by Skyworks

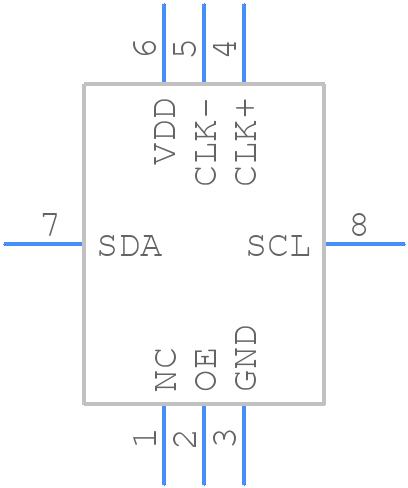

Symbol

PCB Footprints

3D Models

570BAC000126DG Details

Manufacturer Part Number:
570BAC000126DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Skyworks Solutions Inc
YTEOL:
6
Additional Feature:
TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Fall Time-Max:
0.35 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
1417.5 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC8,.2X.28,100
Physical Dimension:
7.0mm x 5.0mm x 1.8mm
Qualification Status:
Not Qualified
Rise Time-Max:
0.35 ns
Screening Level:
MIL-STD-883
Supply Current-Max:
108 mA
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Skyworks provides a recommended PCB layout and land pattern in their application note AN-2004, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The 570BAC000126DG has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat dissipation through a heat sink or thermal pad, and to follow proper thermal management design practices.
Skyworks recommends using a reflow soldering process with a peak temperature of 260°C. It's essential to follow the recommended soldering profile and handling procedures to prevent damage to the device.
Skyworks provides a troubleshooting guide in their application note AN-2005, which covers common issues and debugging techniques. Additionally, engineers can use standard RF measurement tools, such as spectrum analyzers and vector network analyzers, to diagnose and troubleshoot issues.
The 570BAC000126DG is RoHS and REACH compliant, and meets the requirements of various regulatory bodies, including the FCC and ETSI. Engineers should ensure that their design meets the necessary environmental and regulatory requirements for their target market.

Community Provided

System Verified

Community Approved

Use the download button to access the 570BAC000126DG schematic symbol, PCB footprint, and 3D model.
