570BCC000107DG footprint, schematic symbol and 3D model by Skyworks

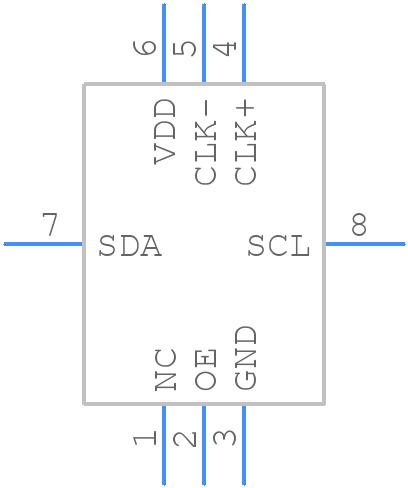

Symbol

PCB Footprints

3D Models

570BCC000107DG Details

Manufacturer Part Number:
570BCC000107DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Skyworks Solutions Inc
YTEOL:
6
Additional Feature:
TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Fall Time-Max:
0.35 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
7%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
1417.5 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC8,.2X.28,100
Physical Dimension:
7.0mm x 5.0mm x 1.8mm
Qualification Status:
Not Qualified
Rise Time-Max:
0.35 ns
Screening Level:
MIL-STD-883
Supply Current-Max:
108 mA
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier

The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN-20060, which provides guidelines for designing a PCB layout that minimizes parasitic inductance and ensures optimal performance of the 570BCC000107DG.
The 570BCC000107DG has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal management.
The 570BCC000107DG is rated for operation from -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
The 570BCC000107DG requires a specific biasing and configuration to operate optimally. Refer to the Skyworks Solutions application note AN-20060 for detailed information on biasing and configuration guidelines.
The 570BCC000107DG is a sensitive device and requires proper ESD protection and handling. It is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and to avoid touching the device pins or exposed internal components.
