570BCC000112DG - Skyworks

Description: 10 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable (Reprogrammable) 8-SMD, No Lead , -40°C ~ 85°C

Download 570BCC000112DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

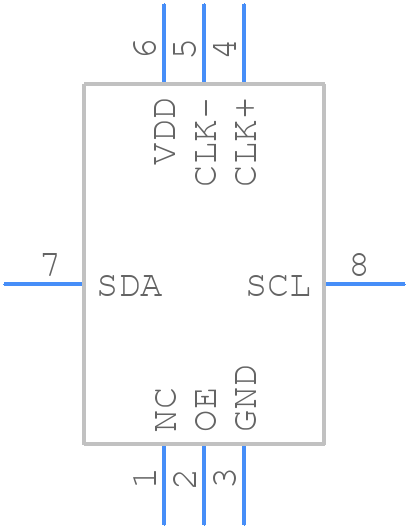

570BCC000112DG - Skyworks - PCB symbol
click to zoom
PCB Footprints
570BCC000112DG - Skyworks PCB footprint - Other - Other - 8-SMD_2025-1.1
click to zoom
3D Models
570BCC000112DG - Skyworks - 3D model - Other - 8-SMD_2025-1.1
click to zoom

570BCC000112DG Details

  • Manufacturer Part Number:

    570BCC000112DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    7%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1417.5 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Output Low Current-Max:

    32 mA

  • Package Equivalence Code:

    LCC8,.2X.28,100

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Current-Max:

    108 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

570BCC000112DG Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN-20060, which provides detailed guidelines for designing a PCB layout that minimizes parasitics and ensures optimal performance.
  • The 570BCC000112DG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device.
  • The recommended input and output matching network can be found in the Skyworks Solutions application note AN-20060, which provides a detailed design guide for optimizing the input and output impedance matching for the 570BCC000112DG.
  • Common issues with the 570BCC000112DG can be troubleshooted by checking the PCB layout, ensuring proper input and output impedance matching, and verifying that the device is operated within its recommended operating conditions. Skyworks Solutions also provides a troubleshooting guide in their application note AN-20060.
  • The reliability and MTBF of the 570BCC000112DG can be found in the Skyworks Solutions reliability report, which provides detailed information on the device's reliability and MTBF based on accelerated life testing and other reliability tests.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

570BCC000112DG Overview

Use the download button to access the 570BCC000112DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 570BC, or try a keyword search, such as XO
