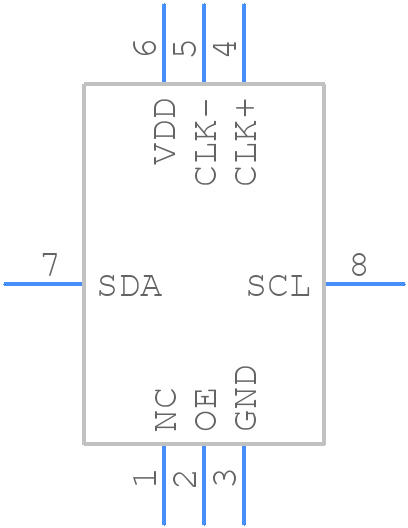

570BCC000121DG footprint, schematic symbol and 3D model by Skyworks

Symbol

PCB Footprints

3D Models

570BCC000121DG Details

Manufacturer Part Number:
570BCC000121DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Skyworks Solutions Inc
YTEOL:
6
Additional Feature:
TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Fall Time-Max:
0.35 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
7%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
1417.5 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC8,.2X.28,100
Physical Dimension:
7.0mm x 5.0mm x 1.8mm
Qualification Status:
Not Qualified
Rise Time-Max:
0.35 ns
Screening Level:
MIL-STD-883
Supply Current-Max:
108 mA
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Skyworks provides a recommended PCB layout and land pattern in their application note AN-20060, which should be followed to ensure optimal performance and minimize parasitic effects.
The 570BCC000121DG has a maximum junction temperature of 150°C. Ensure proper thermal management by providing a heat sink or thermal pad, and follow the recommended thermal design guidelines in the datasheet.
The recommended input and output matching network can be found in the datasheet, but it's also recommended to use Skyworks' proprietary matching tool, Skyworks' Impedance Matching Tool, to optimize the matching network for specific application requirements.
Follow the recommended biasing conditions outlined in the datasheet, and ensure that the voltage and current limits are not exceeded. Additionally, consider using a voltage regulator or biasing circuit to maintain a stable voltage supply.
The 570BCC000121DG has ESD protection, but it's still recommended to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and handling the device by the package rather than the pins.
