570CCC000112DG - Skyworks

570CCC000112DG Details

• Manufacturer Part Number:

  570CCC000112DG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Singapore, Taiwan

• Manufacturer:

  Skyworks Solutions Inc

• YTEOL:

  6

• Additional Feature:

  TRI-STATE; ENABLE/DISABLE FUNCTION

• Frequency Adjustment-Mechanical:

  NO

• Frequency Stability:

  7%

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  8

• Operating Frequency-Max:

  160 MHz

• Operating Frequency-Min:

  10 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Oscillator Type:

  CMOS

• Output Load:

  15 pF

• Output Low Current-Max:

  32 mA

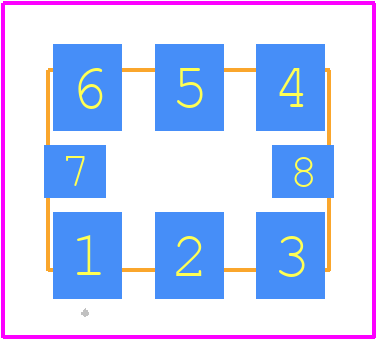

• Package Equivalence Code:

  LCC8,.2X.28,100

• Physical Dimension:

  7.0mm x 5.0mm x 1.8mm

• Supply Current-Max:

  98 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Symmetry-Max:

  55/45 %
