571FDB000159DG footprint, schematic symbol and 3D model by Skyworks

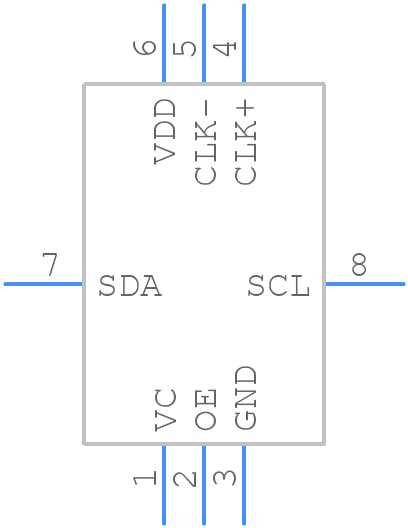

Symbol

PCB Footprints

3D Models

571FDB000159DG Details

Manufacturer Part Number:
571FDB000159DG
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Skyworks Solutions Inc
YTEOL:
7
Additional Feature:
TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Control Voltage-Max:
3.3 V
Fall Time-Max:
0.35 ns
Frequency Adjustment-Mechanical:
NO
Frequency Deviation/Pullability:
150 ppm
Frequency Stability:
50%
Linearity:
10%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
1417.5 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVPECL
Output Load:
50 OHM
Package Equivalence Code:
LCC8,.2X.28,100
Physical Dimension:
7.0mm x 5.0mm x 1.8mm
Qualification Status:
Not Qualified
Rise Time-Max:
0.35 ns
Supply Current-Max:
117 mA
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Skyworks provides a recommended PCB layout and land pattern in their application note AN-20060, which should be followed to ensure optimal performance and minimize parasitic effects.
The 571FDB000159DG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through a heat sink or thermal pad, and to follow proper thermal management design practices.
Skyworks recommends following the soldering and assembly guidelines outlined in their application note AN-20060, which includes information on soldering temperatures, times, and techniques to ensure reliable assembly and minimize damage to the device.
Skyworks provides a troubleshooting guide in their application note AN-20060, which covers common issues such as output power reduction, frequency drift, and noise, along with recommended solutions and debugging techniques.
The 571FDB000159DG is RoHS and REACH compliant, and meets the requirements of various environmental and regulatory standards such as WEEE and EU's ErP Directive. However, it's essential to ensure that the device is used in compliance with all applicable regulations and standards in the target application and region.

Community Provided

System Verified

Community Approved

Use the download button to access the 571FDB000159DG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 571FD, or try a keyword search, such as VCXO
